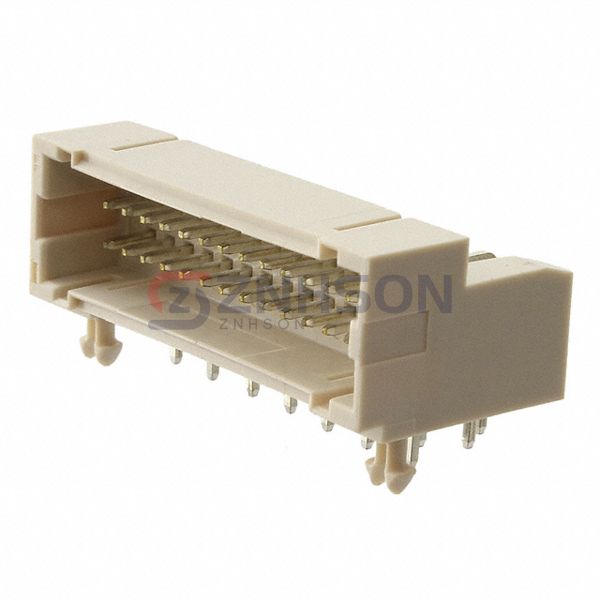

2-292262-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 26POS 1.5MM
$5.07
Available to order
Reference Price (USD)
1+
$5.60000
10+
$5.37400
480+
$3.91819
960+
$3.47041
1,440+
$3.24651
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-292262-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.079" (2.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: -
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: -
- Insulation Height: 0.358" (9.10mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Lock
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
Samtec Inc.
BKT-123-02-L-V-A-TR
TE Connectivity AMP Connectors
5102153-5
Samtec Inc.
TSM-111-01-T-SV-TR
TE Connectivity AMP Connectors
825457-4
Preci-Dip
860-80-048-40-001101
TE Connectivity AMP Connectors
207120-9
Mill-Max Manufacturing Corp.
850-90-012-30-001000

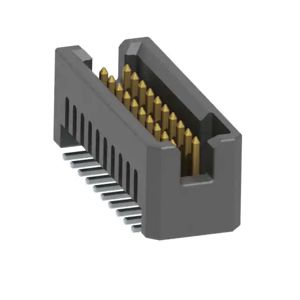

Samtec Inc.
