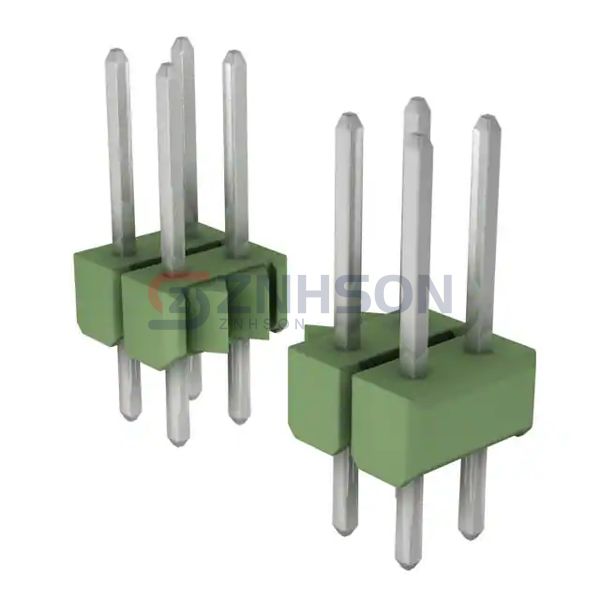

2-826925-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 40POS 2.54MM
$3.11
Available to order
Reference Price (USD)
1+
$2.81000
10+
$2.69700
100+
$2.24780
500+
$1.91066
1,000+
$1.62968
5,000+
$1.46110
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 2-826925-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the TE Connectivity AMP Connectors difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.264" (6.70mm)
- Contact Length - Post: 0.126" (3.20mm)
- Overall Contact Length: 0.500" (12.70mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): 5A
- Voltage Rating: -
Related Products
Preci-Dip
350-10-161-00-106101
TE Connectivity AMP Connectors
2-1445100-8
Amphenol ICC (FCI)
68653-103HLF
Samtec Inc.

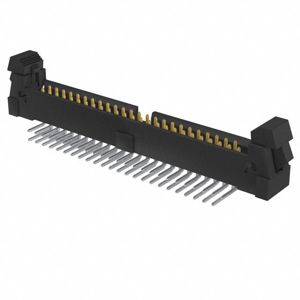

EHT-125-01-S-D-RA-01
Amphenol ICC (FCI)

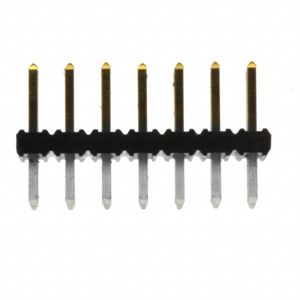

57102-G06-07LF
Preci-Dip

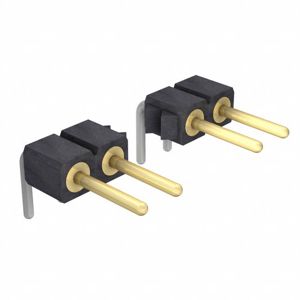

800-V3-025-20-001101
Harwin Inc.

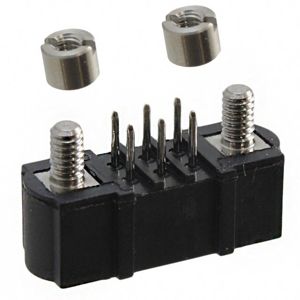

M80-5100642
Samtec Inc.

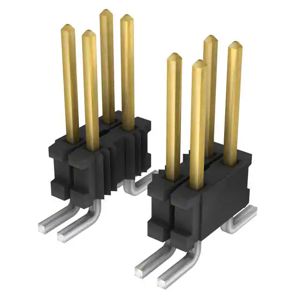

FTR-110-01-S-D-P-TR
