2506-3-00-01-00-00-07-0

Mill-Max Manufacturing Corp.

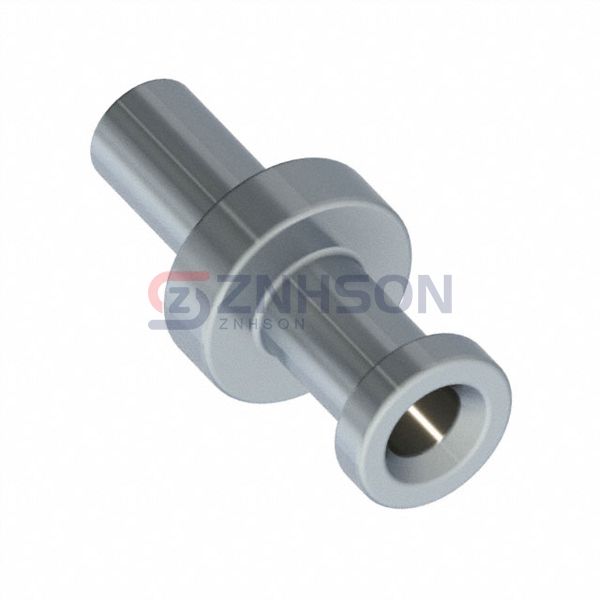

2506-3-00-01-00-00-07-0 Preview
Mill-Max Manufacturing Corp.
TERM TURRET SINGLE L=3.96MM
$0.44
Available to order
Reference Price (USD)
1,000+
$0.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Terminal Type: Single End
  • Number of Turrets: Single
  • Length - Above Board: 0.156" (3.96mm)
  • Length - Below Flange: 0.115" (2.92mm)
  • Length - Overall: 0.271" (6.88mm)
  • Mounting Type: Through Hole
  • Termination: Swage
  • Flange Diameter: 0.125" (3.18mm)
  • Diameter - Turret Head: 0.093" (2.36mm)
  • Staking Side OD: 0.062" (1.57mm)
  • Staking Side ID: 0.043" (1.09mm)
  • Mounting Hole Diameter: 0.067" (1.70mm)
  • Board Thickness: 0.094" (2.39mm)
  • Contact Material: Brass Alloy
  • Contact Finish: Tin-Lead
  • Contact Finish Thickness: 200.0µin (5.08µm)
  • Insulation: Non-Insulated
