254539
TE Connectivity Erni
TE Connectivity Erni

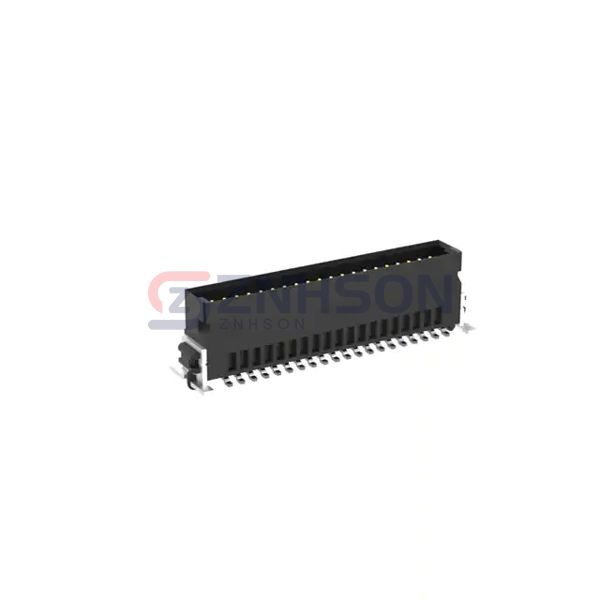

SMC M VERT 40POS SMT 3.25MM
$7.31
Available to order
Reference Price (USD)
1+
$7.31000
500+
$7.2369
1000+
$7.1638
1500+
$7.0907
2000+
$7.0176
2500+
$6.9445
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 254539 TE Connectivity Erni Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.050" (1.27mm)
- Number of Positions: 40
- Number of Rows: 2
- Row Spacing - Mating: 0.050" (1.27mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Surface Mount
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.157" (4.00mm)
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: 0.325" (8.25mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: Board Guide, Pick and Place, Solder Retention
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1.7A per Contact
- Voltage Rating: -
