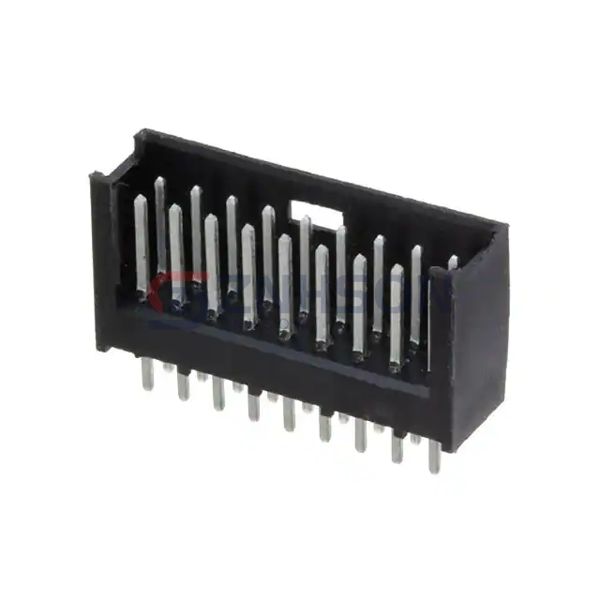

280509-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 18POS 2.54MM
$2.99
Available to order
Reference Price (USD)
1+
$2.96000
10+
$2.83800
100+
$2.36470
500+
$2.00998
1,000+
$1.71439
5,000+
$1.53704
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your electronic systems with 280509-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins, engineered for superior performance and longevity. Featuring high-grade materials and precision design, these connectors provide secure and stable connections in demanding environments. Perfect for PCB applications, automation, and telecommunications. Ready to enhance your project? Submit an inquiry now and our team will assist you promptly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 3 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.260" (6.60mm)
- Contact Length - Post: 0.138" (3.50mm)
- Overall Contact Length: 0.563" (14.30mm)
- Insulation Height: 0.496" (12.60mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 118.1µin (3.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 80°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 40V
