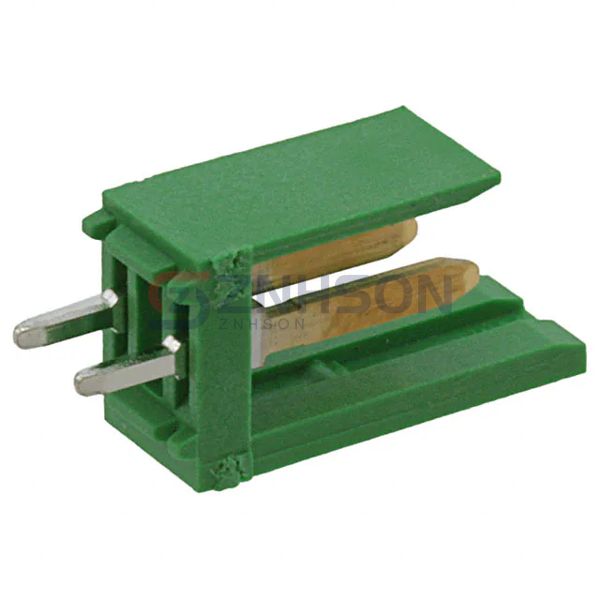

280609-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 2POS 3.96MM
$1.10
Available to order
Reference Price (USD)
1+
$0.78000
10+
$0.68700
100+
$0.59280
500+
$0.48502
1,000+
$0.43114
5,000+
$0.37724
10,000+
$0.35838
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 280609-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.156" (3.96mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.394" (10.00mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.642" (16.30mm)
- Insulation Height: 0.913" (23.20mm)
- Contact Shape: Rectangular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 14.5µin (0.37µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polycarbonate, Glass Filled
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Green
- Current Rating (Amps): -
- Voltage Rating: -
