281696-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

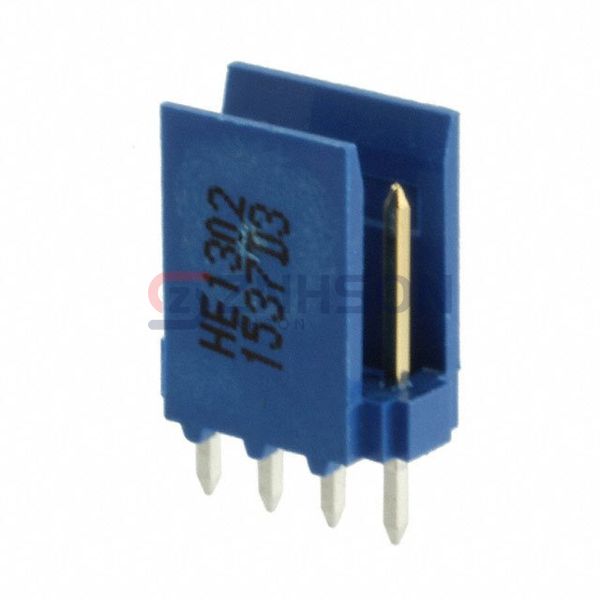

CONN HEADER VERT 4POS 2.54MM
$1.16
Available to order
Reference Price (USD)
1+
$0.85000
10+
$0.74600
25+
$0.70160
50+
$0.67240
100+
$0.64320
250+
$0.58476
500+
$0.52626
1,000+
$0.46779
2,500+
$0.42394
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 281696-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 2 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Friction Lock
- Contact Length - Mating: 0.276" (7.00mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: 0.492" (12.50mm)
- Insulation Height: 0.449" (11.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 16.0µin (0.41µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -40°C ~ 100°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Blue
- Current Rating (Amps): -
- Voltage Rating: -
