2N5638_D26Z
onsemi
onsemi

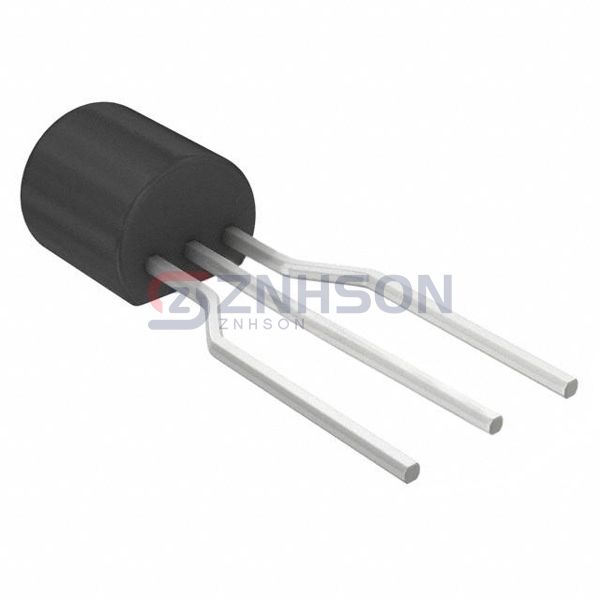

JFET N-CH 30V 0.35W TO92
$0.00
Available to order
Reference Price (USD)
1+
$0.00000
500+
$0
1000+
$0
1500+
$0
2000+
$0
2500+
$0
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Achieve new performance benchmarks with onsemi's 2N5638_D26Z JFET transistors, specifically engineered for phase-sensitive detection circuits. The unique triple-diffused structure minimizes 1/f noise while delivering 0.1dB gain flatness across bandwidths to 100MHz. Medical imaging systems and lock-in amplifiers benefit from these precision characteristics. Check stock availability through our real-time inventory system or ask about custom testing protocols for mission-critical deployments.
Specifications
- Product Status: Obsolete
- FET Type: N-Channel
- Voltage - Breakdown (V(BR)GSS): 30 V
- Drain to Source Voltage (Vdss): 30 V
- Current - Drain (Idss) @ Vds (Vgs=0): 50 mA @ 20 V
- Current Drain (Id) - Max: -
- Voltage - Cutoff (VGS off) @ Id: -
- Input Capacitance (Ciss) (Max) @ Vds: 10pF @ 12V (VGS)
- Resistance - RDS(On): 30 Ohms
- Power - Max: 350 mW
- Operating Temperature: -55°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-226-3, TO-92-3 (TO-226AA) Formed Leads
- Supplier Device Package: TO-92-3
