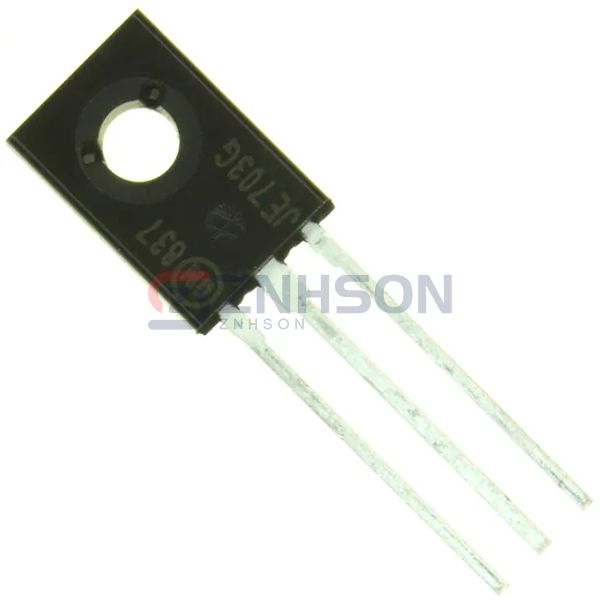

2SD1685F
onsemi
onsemi
TRANS NPN 20V 5A TO126ML
$0.29
Available to order
Reference Price (USD)
1+
$0.29000
500+
$0.2871
1000+
$0.2842
1500+
$0.2813
2000+
$0.2784
2500+
$0.2755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Trust 2SD1685F by onsemi for all your transistor needs in the Discrete Semiconductor Products category. These Transistors - Bipolar (BJT) - Single are built to last, with features like high breakdown voltage and excellent thermal performance. Perfect for automotive, industrial, and consumer electronics, 2SD1685F ensures reliability. Get in touch today to request a quote and see why onsemi is a trusted name in the industry.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 5 A
- Voltage - Collector Emitter Breakdown (Max): 20 V
- Vce Saturation (Max) @ Ib, Ic: 500mV @ 60mA, 3A
- Current - Collector Cutoff (Max): 100nA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 160 @ 500mA, 2V
- Power - Max: 1.5 W
- Frequency - Transition: 120MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-225AA, TO-126-3
- Supplier Device Package: TO-126ML
Related Products
Central Semiconductor Corp
2N6486 TIN/LEAD
onsemi
KSA992FBTA
Fairchild Semiconductor
KSC2669OBU
Rohm Semiconductor
2SA2029FHAT2LR
Infineon Technologies
BCX55H6327XTSA1
Nexperia USA Inc.
PBSS302PD,115
Central Semiconductor Corp
2N3391A PBFREE
Fairchild Semiconductor
FJPF13007H1TTU
Central Semiconductor Corp

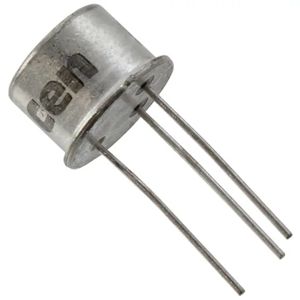

2N4895 PBFREE
