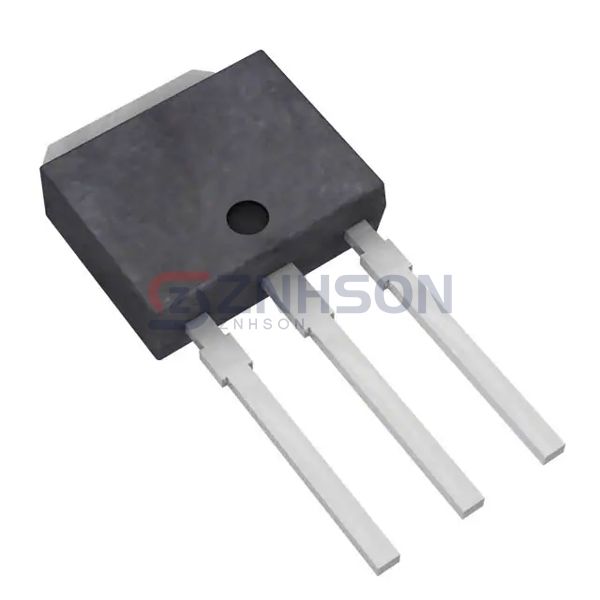

2SD1815S-E
onsemi
onsemi
TRANS NPN 100V 3A TP
$0.29
Available to order
Reference Price (USD)
1+
$0.75000
10+
$0.65700
100+
$0.50340
500+
$0.39796
1,000+
$0.31836
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Optimize your designs with 2SD1815S-E by onsemi, a leader in Discrete Semiconductor Products. These Transistors - Bipolar (BJT) - Single are designed for precision and reliability, offering excellent linearity and low distortion. Whether for RF applications or general-purpose switching, 2SD1815S-E is the perfect fit. Contact us today to learn more and place your order with onsemi.
Specifications
- Product Status: Obsolete
- Transistor Type: NPN
- Current - Collector (Ic) (Max): 3 A
- Voltage - Collector Emitter Breakdown (Max): 100 V
- Vce Saturation (Max) @ Ib, Ic: 400mV @ 150mA, 1.5A
- Current - Collector Cutoff (Max): 1µA (ICBO)
- DC Current Gain (hFE) (Min) @ Ic, Vce: 70 @ 500mA, 5V
- Power - Max: 1 W
- Frequency - Transition: 180MHz
- Operating Temperature: 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-251-3 Short Leads, IPak, TO-251AA
- Supplier Device Package: TP
Related Products
Rohm Semiconductor
2SC5663T2L
Microchip Technology
JANTXV2N6274
NXP USA Inc.
PDTD113ZQA147
Nexperia USA Inc.
MJD45H11J
Diodes Incorporated
ZTP25040DFHQTA
Infineon Technologies

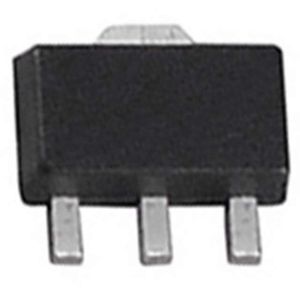

BCX5116H6433XTMA1
Nexperia USA Inc.

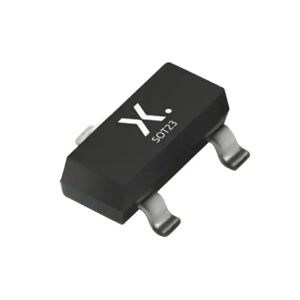

2PD602ASL,235
Taiwan Semiconductor Corporation

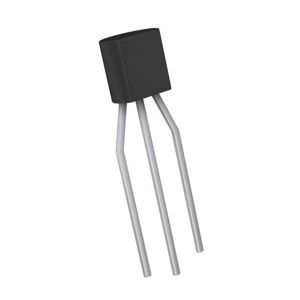

BC548A A1G
Toshiba Semiconductor and Storage

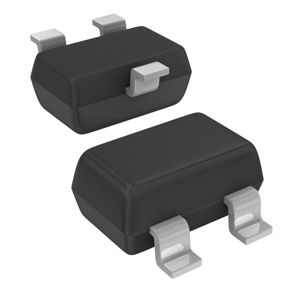

2SA1586-Y,LXHF
