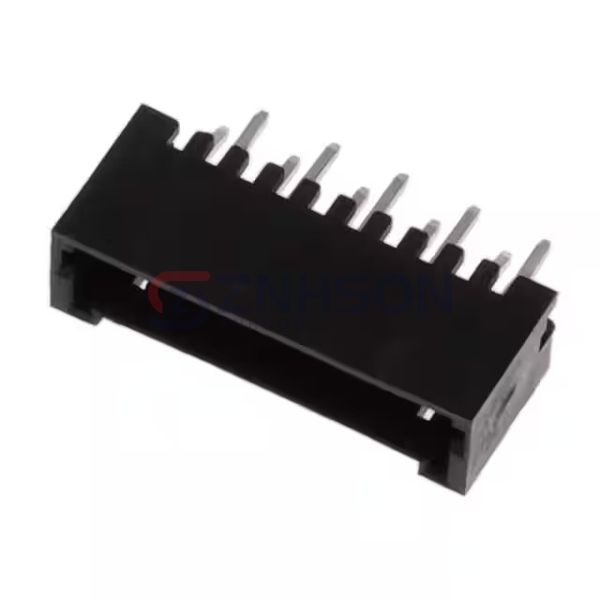

3-292207-0
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 10POS 1.5MM
$0.79
Available to order
Reference Price (USD)
1+
$0.70000
10+
$0.65900
25+
$0.59720
50+
$0.53540
100+
$0.51480
250+
$0.47360
850+
$0.41181
1,700+
$0.37064
2,550+
$0.35005
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 3-292207-0 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.059" (1.50mm)
- Number of Positions: 10
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Kinked Pin, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.094" (2.40mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.307" (7.80mm)
- Insulation Height: 0.272" (6.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 39.4µin (1.00µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polyamide (PA), Nylon, Glass Filled
- Features: Board Guide
- Operating Temperature: -30°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 50VAC
Related Products
Samtec Inc.
TSM-104-02-LM-DV
Hirose Electric Co Ltd
IT-P-2P-25H(11)
Samtec Inc.
TSM-107-01-L-SH-A
Samtec Inc.
TMM-108-06-F-D-SM-A-P-TR
Samtec Inc.
TMM-136-06-L-D-SM-A-P-TR
TE Connectivity AMP Connectors
2-1971846-2
Samtec Inc.

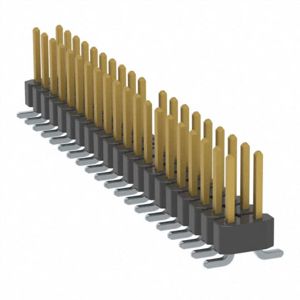

TSM-120-01-L-DV-020-P-TR
