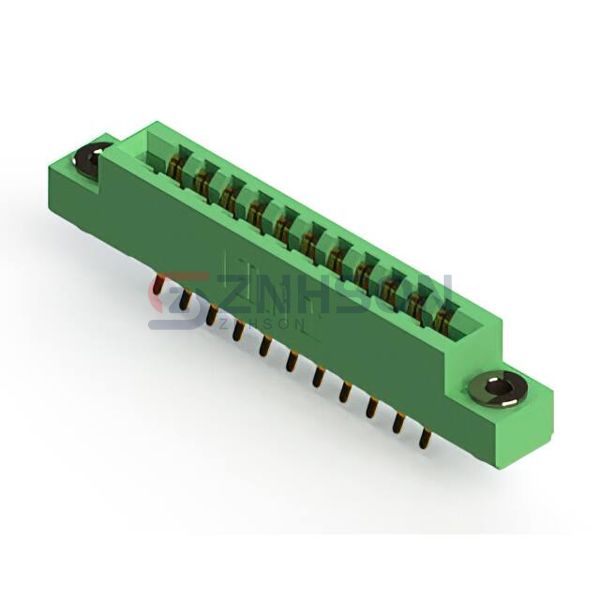

305-022-556-503
EDAC Inc.
EDAC Inc.
305 SERIES (.156" (3.96MM) CONTA
$12.56
Available to order
Reference Price (USD)
1+
$12.56080
500+
$12.435192
1000+
$12.309584
1500+
$12.183976
2000+
$12.058368
2500+
$11.93276
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic assemblies with 305-022-556-503 Card Edge Connectors - Edgeboard Connectors, manufactured by EDAC Inc.. These connectors boast excellent mechanical strength and reliable signal transmission, suitable for high-frequency applications. Ideal for use in servers, data storage, and communication devices. 305-022-556-503 is your go-to choice for precision engineering. Get in touch for a quote or more information!
Specifications
- Product Status: Active
- Card Type: Non Specified - Dual Edge
- Gender: Female
- Number of Positions/Bay/Row: 11
- Number of Positions: 22
- Card Thickness: 0.054" ~ 0.070" (1.37mm ~ 1.78mm)
- Number of Rows: 2
- Pitch: 0.156" (3.96mm)
- Read Out: Dual
- Features: Card Extender
- Mounting Type: Board Edge, Straddle Mount
- Termination: Solder
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
- Contact Type: Semi Bellows
- Color: Green
- Flange Feature: Flush Mount, Floating Bobbin, 0.116" (2.95mm) Dia
- Operating Temperature: -40°C ~ 105°C
Related Products
EDAC Inc.
807-012-556-203
EDAC Inc.
895-014-558-508
EDAC Inc.
346-042-555-803
EDAC Inc.
307-014-445-102
EDAC Inc.
333-064-523-212
EDAC Inc.

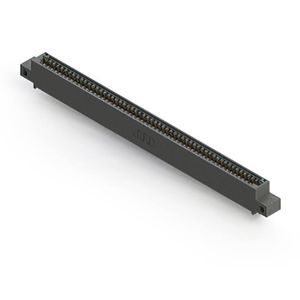

895-055-544-412
EDAC Inc.

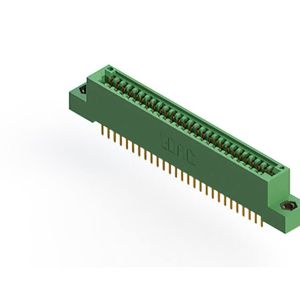

345-054-520-207
EDAC Inc.

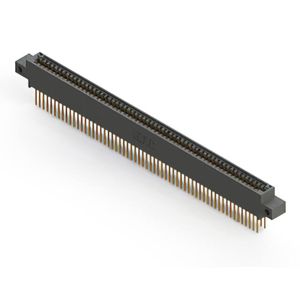

395-118-542-812
EDAC Inc.

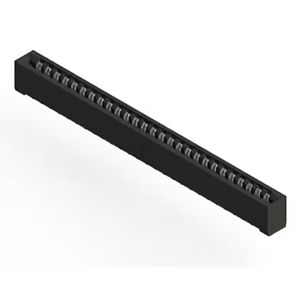

857-027-401-101
