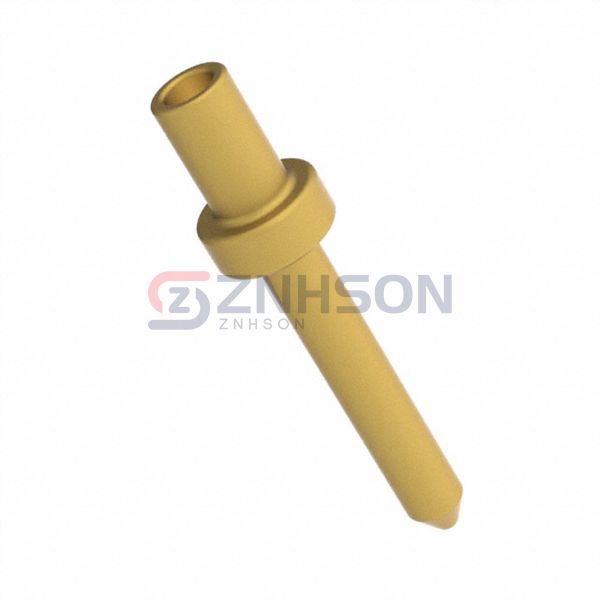

3114-1-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC .025DIA GOLD
$0.73
Available to order
Reference Price (USD)
1+
$0.64000
10+
$0.60000
25+
$0.54000
50+
$0.48000
100+
$0.46000
250+
$0.42000
500+
$0.40000
1,000+
$0.33000
2,500+
$0.30000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance your electronic designs with 3114-1-00-15-00-00-08-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, known for their reliability and efficiency. These connectors provide secure connections, low insertion loss, and long-term durability, making them ideal for telecommunications, automotive, and industrial applications. Don't compromise on quality reach out to us now for competitive pricing and fast delivery.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.025" (0.64mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.150" (3.81mm)
- Length - Below Flange: 0.051" (1.30mm)
- Length - Overall: 0.221" (5.61mm)
- Flange Diameter: 0.050" (1.27mm)
- Mounting Hole Diameter: 0.035" (0.89mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.031" (0.79mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
