3117-3-00-15-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

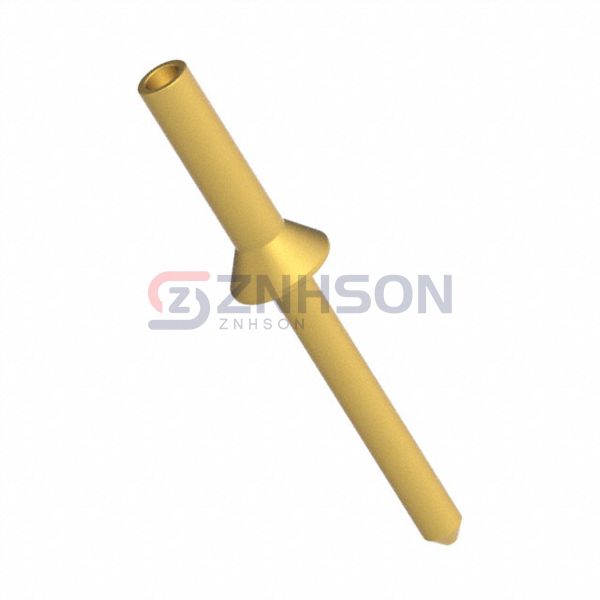

CONN PC PIN CIRC 0.024DIA GOLD
$0.22
Available to order
Reference Price (USD)
1+
$0.20000
10+
$0.18500
25+
$0.15760
50+
$0.13800
100+
$0.12820
250+
$0.11340
500+
$0.10846
1,000+
$0.08874
2,500+
$0.08134
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 3117-3-00-15-00-00-08-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors designed for reliable electrical connections. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for various electronic applications. Whether you need them for industrial equipment, consumer electronics, or automotive systems, our terminals ensure secure and stable performance. Contact us today for a quote and let us provide the perfect solution for your connectivity needs.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.024" (0.61mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.188" (4.78mm)
- Length - Below Flange: 0.110" (2.79mm)
- Length - Overall: 0.323" (8.20mm)
- Flange Diameter: 0.060" (1.52mm)
- Mounting Hole Diameter: 0.035" (0.89mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.094" (2.39mm)
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
