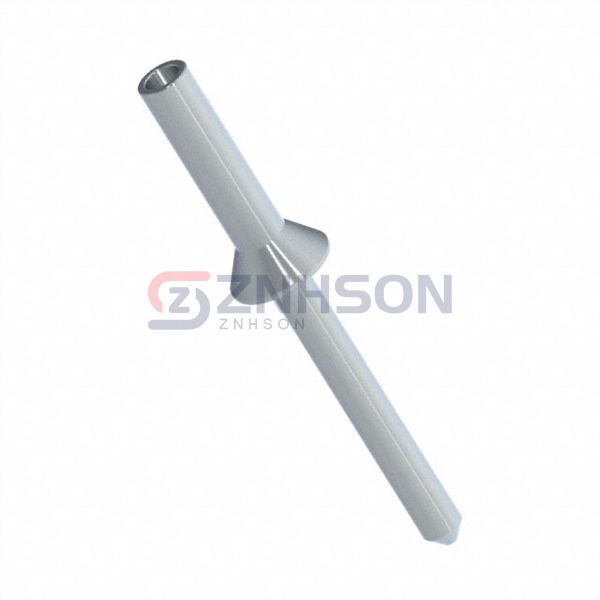

3117-3-00-80-00-00-08-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONN PC PIN CIRC
$0.40
Available to order
Reference Price (USD)
1,000+
$0.48000
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your projects with 3117-3-00-80-00-00-08-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors, engineered for precision and durability. Featuring robust materials and superior electrical performance, these connectors are perfect for PCB applications, power supplies, and communication devices. Their versatility and reliability make them a top choice for engineers and manufacturers worldwide. Interested in learning more? Submit your inquiry now, and our team will assist you promptly.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.024" (0.61mm) Dia
- Pin Size - Below Flange: -
- Length - Above Flange: 0.188" (4.78mm)
- Length - Below Flange: 0.110" (2.79mm)
- Length - Overall: 0.323" (8.20mm)
- Flange Diameter: 0.060" (1.52mm)
- Mounting Hole Diameter: 0.035" (0.89mm)
- Mounting Type: Through Hole
- Termination: Swage
- Insulation: Non-Insulated
- Board Thickness: 0.094" (2.39mm)
- Contact Material: Brass Alloy
- Contact Finish: Tin
- Contact Finish Thickness: 200.0µin (5.08µm)
