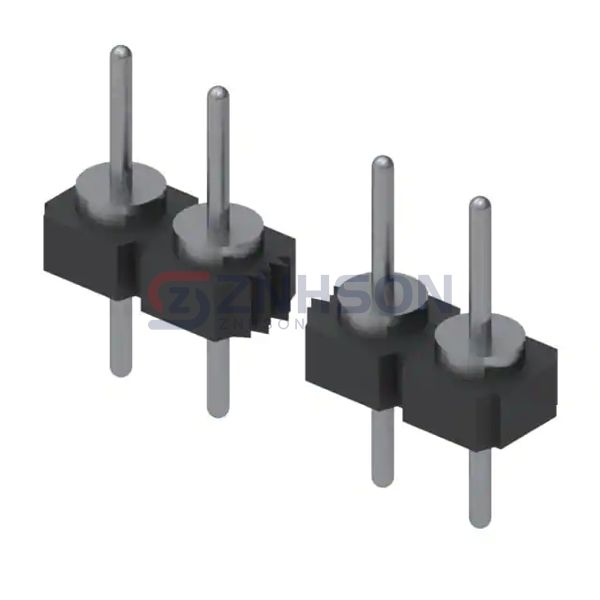

335-40-125-00-160000

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

CONN HEADER VERT 25POS 2.54MM

Datasheet:

335-40-125-00-160000 Datasheet

$8.50

Available to order

Reference Price (USD)

$7.39000

10+

$7.08100

25+

$6.46520

50+

$6.15760

100+

$5.84960

250+

$5.23388

500+

$4.92600

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 335-40-125-00-160000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 25
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.125" (3.18mm)
Contact Length - Post: 0.104" (2.64mm)
Overall Contact Length: 0.299" (7.60mm)
Insulation Height: 0.050" (1.27mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: 200.0µin (5.08µm)
Contact Finish - Post: Tin
Contact Material: Brass Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: 100V, 150VDC
