335-90-117-00-160000

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

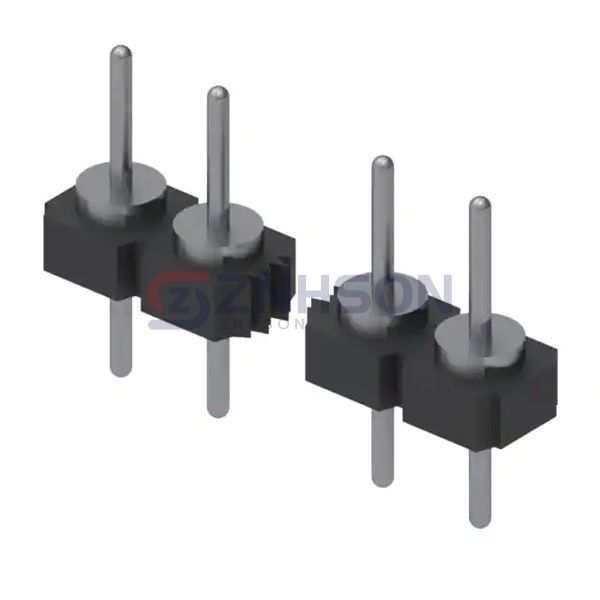

CONN HEADER VERT 17POS 2.54MM

Datasheet:

335-90-117-00-160000 Datasheet

$14.46

Available to order

Reference Price (USD)

50+

$12.87920

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Maximize your device's potential with 335-90-117-00-160000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 17
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.125" (3.18mm)
Contact Length - Post: 0.104" (2.64mm)
Overall Contact Length: 0.299" (7.60mm)
Insulation Height: 0.050" (1.27mm)
Contact Shape: Circular
Contact Finish - Mating: Tin-Lead
Contact Finish Thickness - Mating: 200.0µin (5.08µm)
Contact Finish - Post: Tin-Lead
Contact Material: Brass Alloy
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Features: -
Operating Temperature: -
Ingress Protection: -
Material Flammability Rating: -
Insulation Color: Black
Current Rating (Amps): -
Voltage Rating: 100V, 150VDC
