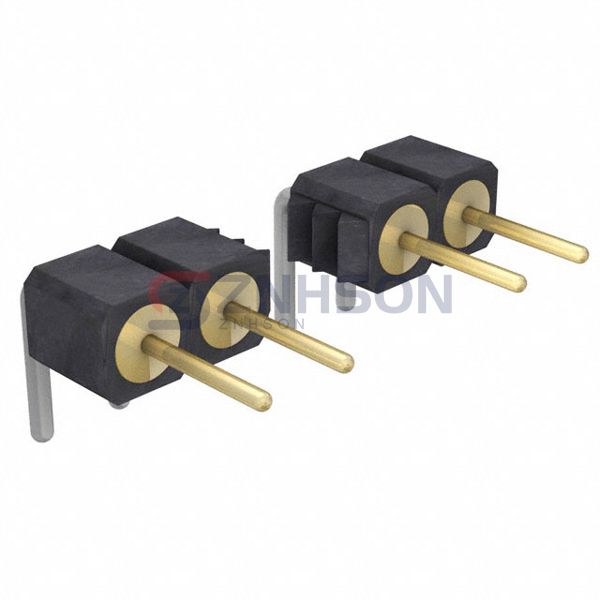

399-V3-125-10-009101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 25POS 2.54MM

Datasheet:

399-V3-125-10-009101 Datasheet

$3.66

Available to order

Reference Price (USD)

200+

$2.56195

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

The 399-V3-125-10-009101 Preci-Dip Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 25
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.157" (4.00mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.100" (2.54mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
