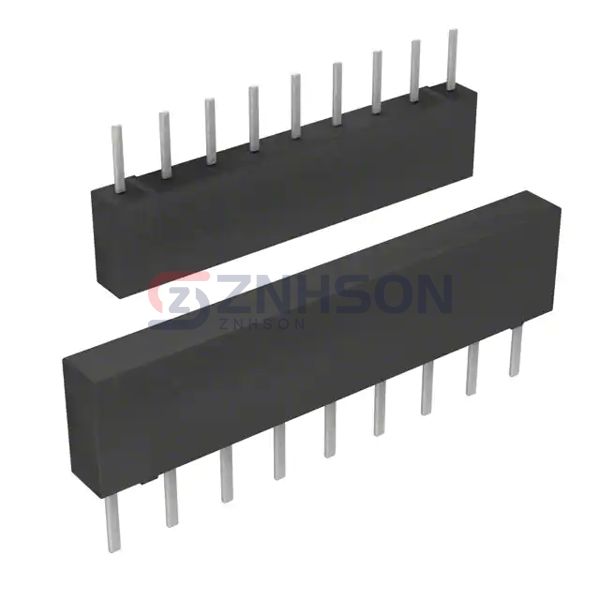

4309R-101-561LF
Bourns Inc.
Bourns Inc.
RES ARRAY 8 RES 560 OHM 9SIP
$0.72
Available to order
Reference Price (USD)
2,002+
$0.46800
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with Bourns Inc.'s 4309R-101-561LF resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every 4309R-101-561LF unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Bussed
- Resistance (Ohms): 560
- Tolerance: ±2%
- Number of Resistors: 8
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: 50ppm/°C
- Number of Pins: 9
- Power Per Element: 200mW
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Through Hole
- Package / Case: 9-SIP
- Supplier Device Package: 9-SIP
- Size / Dimension: 0.884" L x 0.085" W (22.45mm x 2.16mm)
- Height - Seated (Max): 0.195" (4.95mm)
Related Products
Bourns Inc.
CAY16-274J4LF
Vishay Dale Thin Film
DFNA4991BT1
Bourns Inc.
4420P-3-302/622LF
YAGEO
YC124-FR-07750RL
Bourns Inc.
4420P-1-102
Panasonic Electronic Components
EXB-D10C222J
CTS Resistor Products

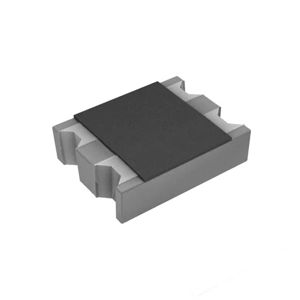

742C043120JP
Vishay Sfernice

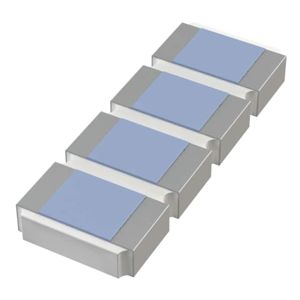

PRA135I4-1KBWBT
Bourns Inc.

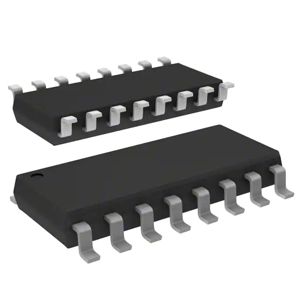

4816P-2-202
