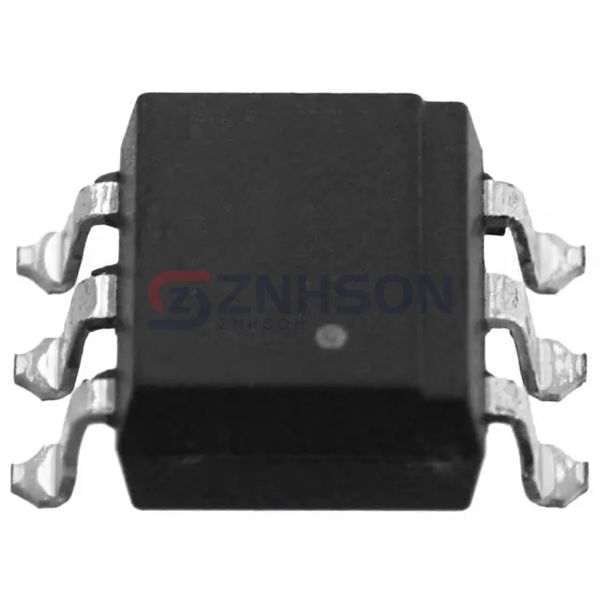

4N46-500E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV DARL W/BASE 6SMD
$1.50
Available to order
Reference Price (USD)
3,000+
$1.28700
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Choose Broadcom Limited's 4N46-500E Optoisolators for reliable signal isolation in Photovoltaic Output systems. These high-performance components are essential for solar inverters, battery management, and industrial control systems, providing unmatched electrical separation and signal integrity. With Broadcom Limited's reputation for quality, you can trust these isolators for long-lasting performance. Submit your inquiry now and let us help you find the right product!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 200% @ 10mA
- Current Transfer Ratio (Max): 1000% @ 10mA
- Turn On / Turn Off Time (Typ): 5µs, 150µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 60mA
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Supplier Device Package: 6-SMD
