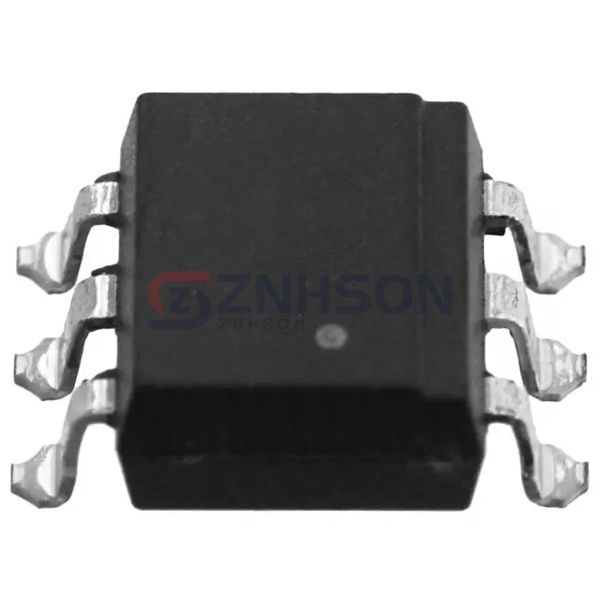

4N46-560E
Broadcom Limited
Broadcom Limited
OPTOISO 3.75KV DARL W/BASE 6SMD
$1.53
Available to order
Reference Price (USD)
3,000+
$1.28775
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Enhance circuit safety with 4N46-560E Optoisolators from Broadcom Limited, featuring Photovoltaic Output for efficient signal transfer. Ideal for use in renewable energy systems, automotive electronics, and industrial machinery, these isolators provide excellent electrical isolation and noise reduction. Their compact design and high reliability make them a top choice for engineers worldwide. Ready to secure your components? Request a quote today and experience the Broadcom Limited difference!
Specifications
- Product Status: Active
- Number of Channels: 1
- Voltage - Isolation: 3750Vrms
- Current Transfer Ratio (Min): 200% @ 10mA
- Current Transfer Ratio (Max): 1000% @ 10mA
- Turn On / Turn Off Time (Typ): 5µs, 150µs
- Rise / Fall Time (Typ): -
- Input Type: DC
- Output Type: Darlington with Base
- Voltage - Output (Max): 20V
- Current - Output / Channel: 60mA
- Voltage - Forward (Vf) (Typ): 1.4V
- Current - DC Forward (If) (Max): 20 mA
- Vce Saturation (Max): -
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 6-SMD, Gull Wing
- Supplier Device Package: 6-SMD
