5-103080-2
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

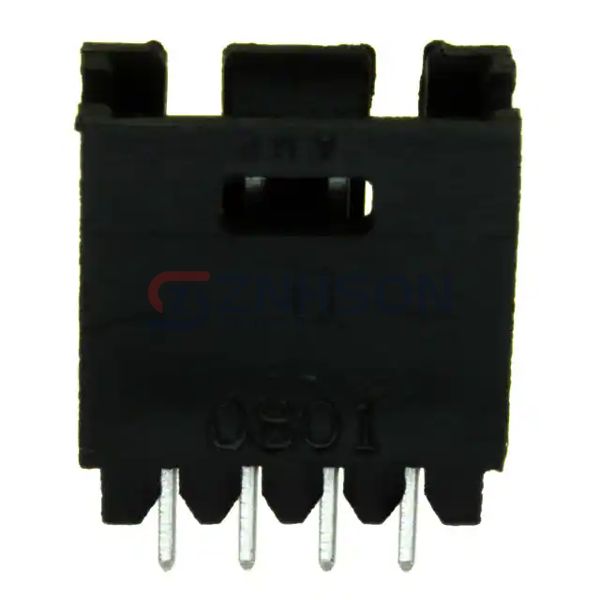

CONN HEADER VERT 4POS 2.54MM
$1.84
Available to order
Reference Price (USD)
1+
$1.56000
40+
$1.32950
120+
$1.21392
520+
$1.01158
1,000+
$0.86706
5,000+
$0.76879
10,000+
$0.75145
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 5-103080-2 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 4
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.130" (3.30mm)
- Overall Contact Length: 0.589" (14.96mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 100.0µin (2.54µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
