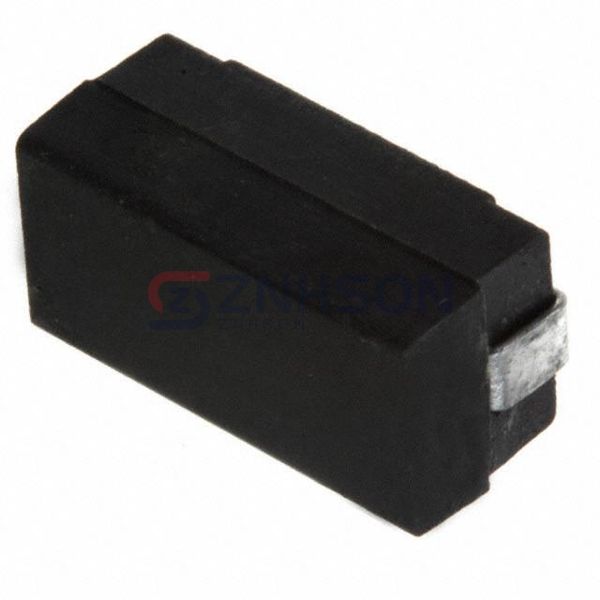

5022R-684H
API Delevan Inc.
API Delevan Inc.
FIXED IND 680UH 116MA 27.2OHM SM
$3.36
Available to order
Reference Price (USD)
800+
$2.43350
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your circuit efficiency with 5022R-684H Fixed Inductors from API Delevan Inc., a trusted name in electronic components. Designed with high-frequency capabilities, minimal eddy current losses, and excellent shielding, these inductors are perfect for wireless charging, LED lighting, and automation systems. 5022R-684H ensures peak performance. Looking for tailored solutions? Contact us for expert advice!
Specifications
- Product Status: Active
- Type: -
- Material - Core: Iron
- Inductance: 680 µH
- Tolerance: ±3%
- Current Rating (Amps): 116 mA
- Current - Saturation (Isat): -
- Shielding: Unshielded
- DC Resistance (DCR): 27.2Ohm Max
- Q @ Freq: 65 @ 790kHz
- Frequency - Self Resonant: 3.1MHz
- Ratings: -
- Operating Temperature: -55°C ~ 125°C
- Inductance Frequency - Test: 790 kHz
- Features: -
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Supplier Device Package: -
- Size / Dimension: 0.520" L x 0.250" W (13.21mm x 6.35mm)
- Height - Seated (Max): 0.230" (5.84mm)
