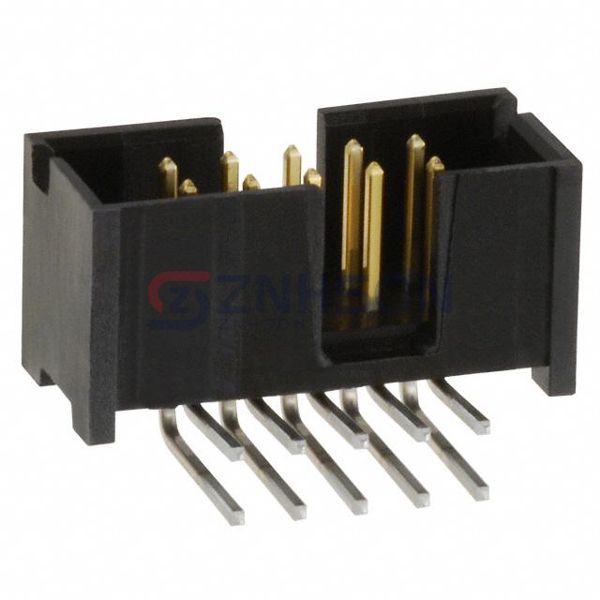

5103311-1
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 10POS 2.54MM
$2.51
Available to order
Reference Price (USD)
1+
$1.89000
10+
$1.72700
125+
$1.49880
500+
$1.27072
1,000+
$1.10781
5,000+
$0.99702
10,000+
$0.97748
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 5103311-1 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 10
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.135" (3.43mm)
- Overall Contact Length: -
- Insulation Height: 0.360" (9.14mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: -
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: -
