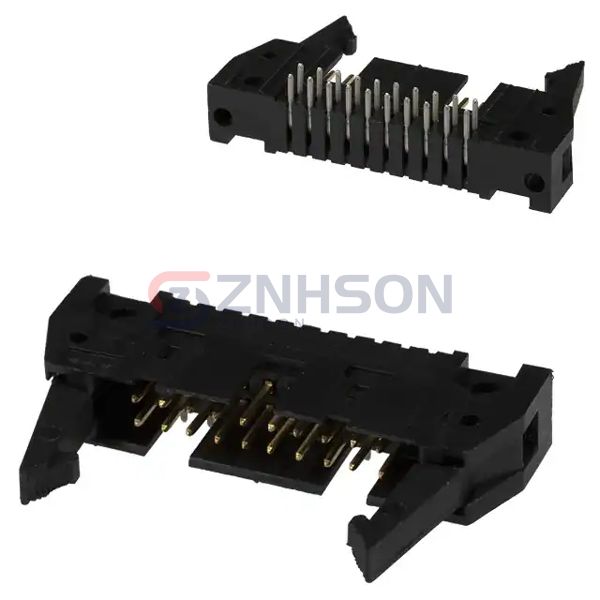

5499141-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER R/A 20POS 2.54MM
$8.08
Available to order
Reference Price (USD)
1+
$6.36000
48+
$5.65292
144+
$5.18188
528+
$4.47525
1,008+
$3.88640
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 5499141-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: -
- Insulation Height: 0.315" (8.00mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A per Contact
- Voltage Rating: 250VAC
Related Products
Amphenol ICC (FCI)
77319-803-20LF
Preci-Dip
892-80-078-10-001101
Preci-Dip
451-80-232-00-017101
Samtec Inc.
TSM-106-01-G-DV-LC
Amphenol ICC (FCI)

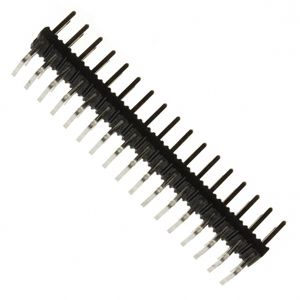

98423-G61-17LF
Amphenol ICC (Commercial Products)

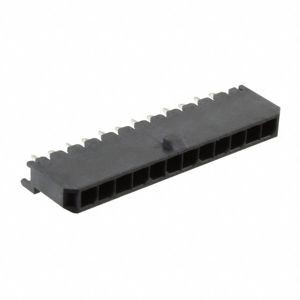

G881B12102KEU
Samtec Inc.
FTS-110-01-F-DV-P
TE Connectivity AMP Connectors
9-103330-0-38
Samtec Inc.

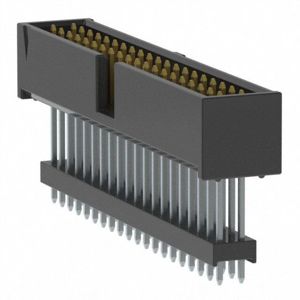

ZSS-120-03-L-D-730
