5499910-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

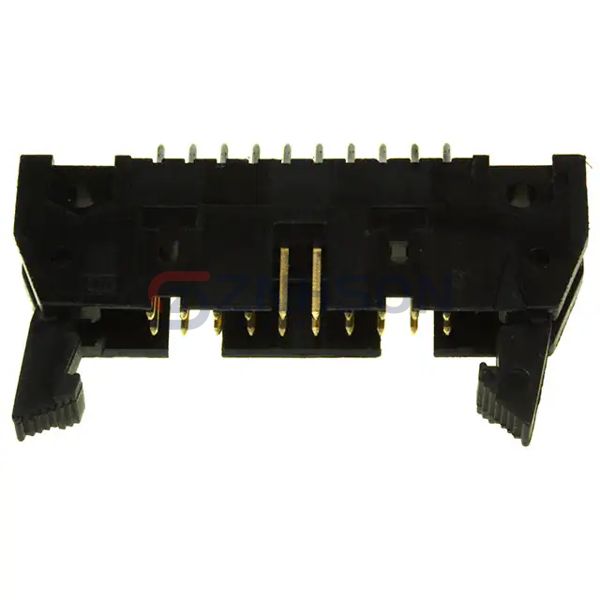

CONN HEADER VERT 20POS 2.54MM
$6.15
Available to order
Reference Price (USD)
1+
$4.34000
10+
$4.17100
100+
$3.47580
500+
$2.95444
1,000+
$2.51997
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize your device's potential with 5499910-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors provide excellent electrical performance, secure locking mechanisms, and space-saving designs. Suitable for industrial machinery, consumer electronics, and more. Ready to order? Send us your inquiry and we'll respond swiftly!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 20
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Short
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.110" (2.79mm)
- Overall Contact Length: 0.639" (16.23mm)
- Insulation Height: 0.549" (13.94mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: -
- Insulation Material: -
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 1A
- Voltage Rating: -
