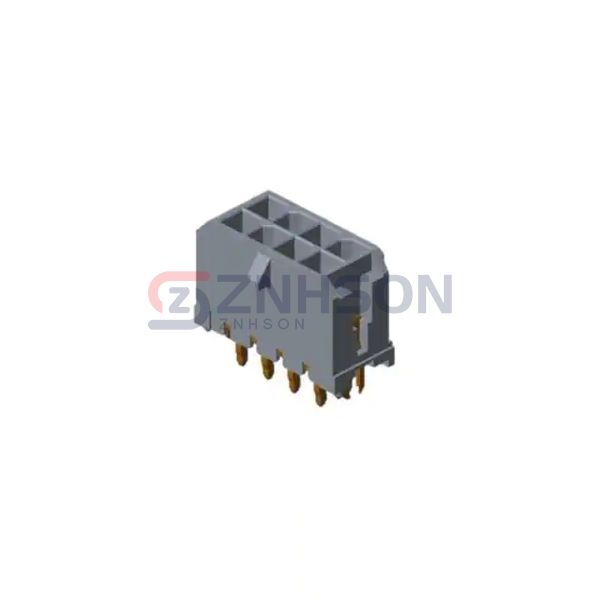

56966-0047N-004
Aces Connectors
Aces Connectors
3.0MM PITCH 4 POSITION MICRO LUC
$1.07
Available to order
Reference Price (USD)
1+
$1.07000
500+
$1.0593
1000+
$1.0486
1500+
$1.0379
2000+
$1.0272
2500+
$1.0165
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Discover high-quality 56966-0047N-004 Aces Connectors Rectangular Connectors - Headers, Male Pins, designed for reliable and secure connections in various electronic applications. These connectors feature durable construction, excellent conductivity, and easy installation, making them ideal for industrial, automotive, and consumer electronics. Whether you need robust headers or precision male pins, our products ensure optimal performance. Contact us today for a quote and let us meet your connectivity needs!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.118" (3.00mm)
- Number of Positions: 4
- Number of Rows: 2
- Row Spacing - Mating: 0.118" (3.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: 0.083" (2.11mm)
- Overall Contact Length: -
- Insulation Height: 0.390" (9.91mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: Board Guide, Pick and Place
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
Related Products
Samtec Inc.

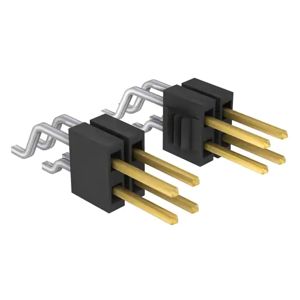

FTSH-107-02-F-DH
Amphenol ICC (FCI)

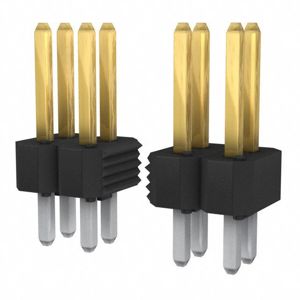

10076801-101-34LF
Samtec Inc.

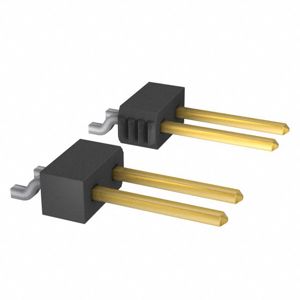

TSM-136-02-S-SH
Preci-Dip

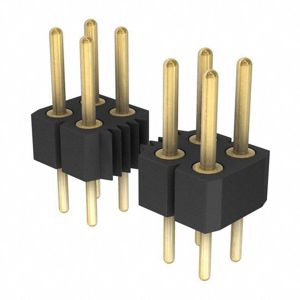

802-10-068-10-001101
Samtec Inc.

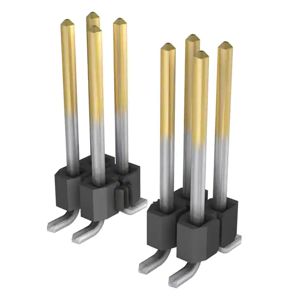

TSM-125-03-L-DV-P
Molex

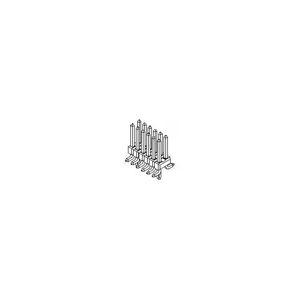

15-91-2260
TE Connectivity AMP Connectors

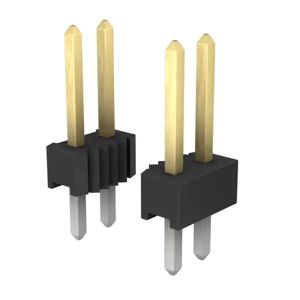

9-146252-0-26
On Shore Technology Inc.

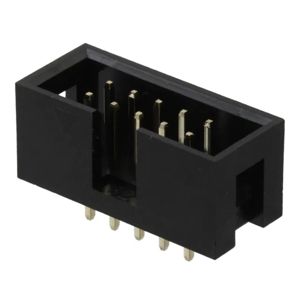

302-S101
Mill-Max Manufacturing Corp.

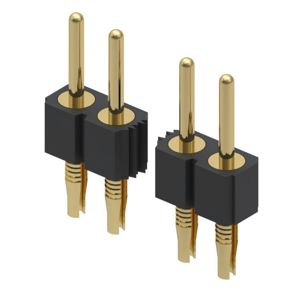

800-10-031-62-001000
