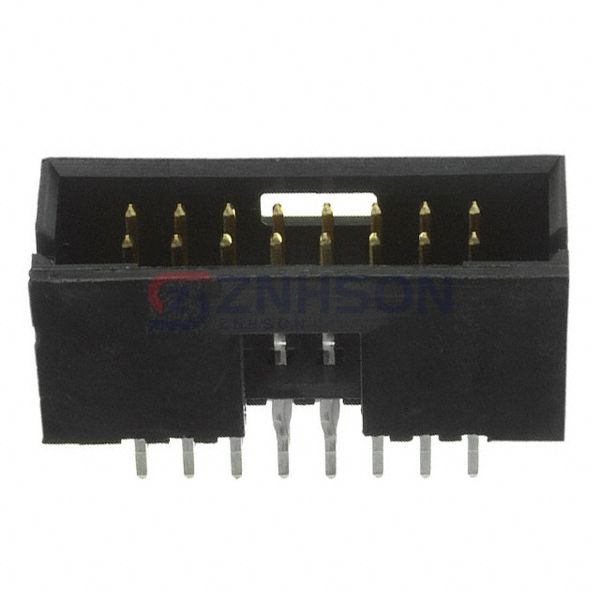

6-102557-4
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
$8.89
Available to order
Reference Price (USD)
110+
$6.86691
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 6-102557-4 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins offer unmatched reliability for your electronic assembly needs. With features like corrosion resistance, high-temperature tolerance, and easy mating, these connectors are suited for aerospace, medical devices, and more. Trust TE Connectivity AMP Connectors for top-tier connectivity solutions. Interested? Get in touch today for pricing and availability!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 16
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Press-Fit, Solder
- Fastening Type: Detent Lock
- Contact Length - Mating: 0.320" (8.13mm)
- Contact Length - Post: 0.250" (6.35mm)
- Overall Contact Length: 0.660" (16.76mm)
- Insulation Height: 0.440" (11.18mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -55°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
TE Connectivity AMP Connectors
3-292207-8
Samtec Inc.
TSW-106-17-L-S
Samtec Inc.
HTSW-103-05-LM-S
Amphenol ICC (FCI)
67996-120HLF
Sullins Connector Solutions
PEC19DACN
Harwin Inc.

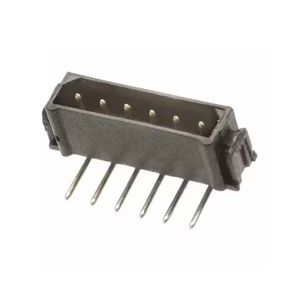

M80-8430542
