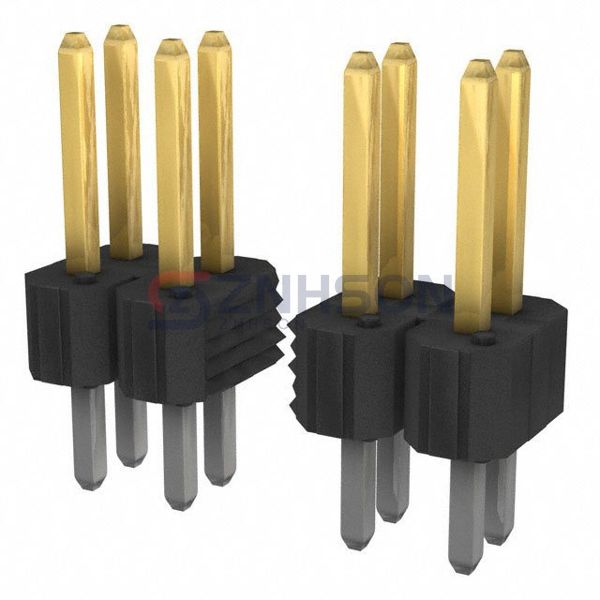

67997-118
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 18POS 2.54MM
$1.03
Available to order
Reference Price (USD)
900+
$0.87048
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 67997-118 Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 18
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.450" (11.43mm)
- Insulation Height: 0.100" (2.54mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold or Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: -
- Contact Material: Phosphor Bronze
- Insulation Material: -
- Features: -
- Operating Temperature: -65°C ~ 130°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Preci-Dip
854-10-051-20-001101
Sullins Connector Solutions
GBC02DAEN
Hirose Electric Co Ltd
DF13-7P-1.25H(21)
Preci-Dip
350-10-120-00-018101
Samtec Inc.
FTSH-150-04-L-DV-P-TR
Samtec Inc.
FTSH-145-04-F-D
3M
30326-6002HB
Mill-Max Manufacturing Corp.
802-10-024-30-001000

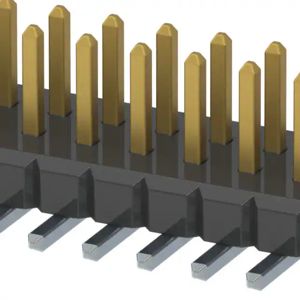

Samtec Inc.
