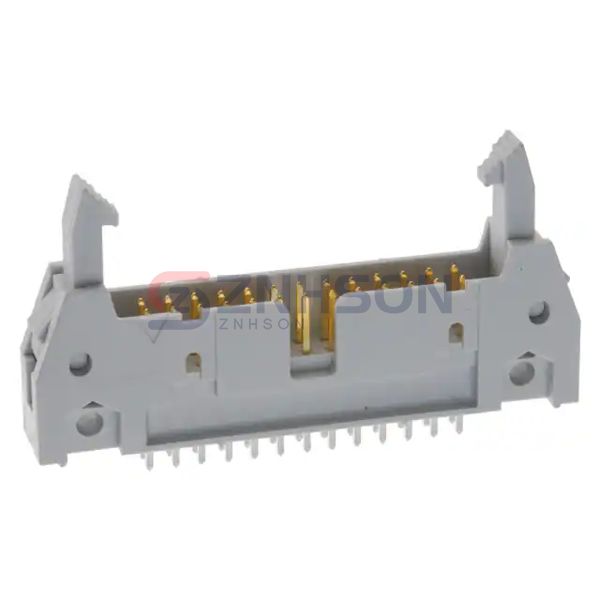

71918-126LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER VERT 26POS 2.54MM
$2.18
Available to order
Reference Price (USD)
1+
$1.61000
18+
$1.46389
108+
$1.25454
504+
$1.04546
1,008+
$0.89610
5,004+
$0.79454
10,008+
$0.77662
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 71918-126LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Amphenol ICC (FCI) difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 26
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks
- Contact Length - Mating: 0.228" (5.80mm)
- Contact Length - Post: 0.114" (2.90mm)
- Overall Contact Length: -
- Insulation Height: 0.685" (17.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold, GXT™
- Contact Finish Thickness - Mating: 30.0µin (0.76µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic, Glass Filled
- Features: Keying Slot, Mounting Flange
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: -
