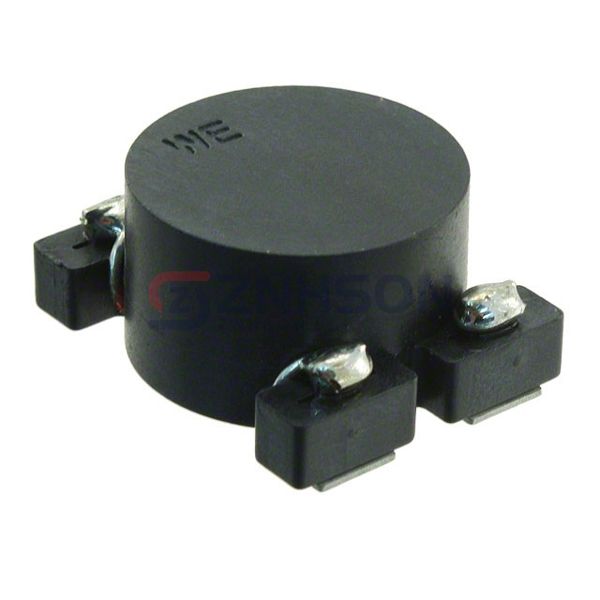

744851056
Würth Elektronik
Würth Elektronik
INDUCT ARRAY 2 COIL 560NH SMD
$5.43
Available to order
Reference Price (USD)
1+
$5.43000
500+
$5.3757
1000+
$5.3214
1500+
$5.2671
2000+
$5.2128
2500+
$5.1585
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 744851056 Würth Elektronik Inductors, Coils, and Chokes are designed to excel in Arrays and Signal Transformers applications. Offering high efficiency, compact size, and robust performance, they are ideal for portable electronics and power management systems. Don t miss out get a quote today and see why leading engineers trust our products!
Specifications
- Product Status: Active
- Number of Coils: 2
- Inductance - Connected In Parallel: 560 nH
- Inductance - Connected In Series: 2.24 µH
- Tolerance: ±20%
- Current Rating - Parallel: 9.8 A
- Current Rating - Series: 4.9 A
- Current Saturation - Parallel: 40 A
- Current Saturation - Series: 20 A
- DC Resistance (DCR) - Parallel: 6.7mOhm Max
- DC Resistance (DCR) - Series: -
- Shielding: Shielded
- Ratings: -
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Surface Mount
- Package / Case: Nonstandard
- Size / Dimension: 0.906" L x 0.728" W (23.00mm x 18.50mm)
- Height: 0.453" (11.50mm)
