7505-0-00-15-00-00-03-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

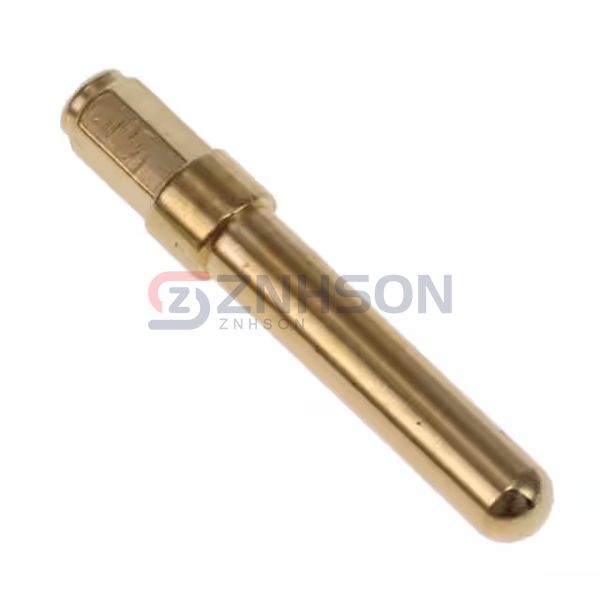

PRESS-FIT PCB PIN
$0.65
Available to order
Reference Price (USD)
1+
$0.65000
500+
$0.6435
1000+
$0.637
1500+
$0.6305
2000+
$0.624
2500+
$0.6175
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 7505-0-00-15-00-00-03-0 Mill-Max Manufacturing Corp. Terminals - PC Pin, Single Post Connectors offer unmatched quality and performance for all your interconnection needs. With features like corrosion resistance, high current capacity, and easy assembly, these connectors are suitable for demanding environments. Applications include medical devices, aerospace systems, and renewable energy solutions. Ready to order? Request a quote today and experience the difference with our premium connectors.
Specifications
- Product Status: Active
- Terminal Type: PC Pin
- Terminal Style: Single End
- Pin Size - Above Flange: 0.062" (1.58mm) Dia
- Pin Size - Below Flange: 0.058" (1.47mm)
- Length - Above Flange: 0.305" (7.75mm)
- Length - Below Flange: 0.100" (2.54mm)
- Length - Overall: 0.455" (11.56mm)
- Flange Diameter: 0.078" (1.98mm)
- Mounting Hole Diameter: 0.068" (1.73mm)
- Mounting Type: Through Hole
- Termination: Press-Fit, Hex
- Insulation: Non-Insulated
- Board Thickness: -
- Contact Material: Brass Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 10.0µin (0.25µm)
