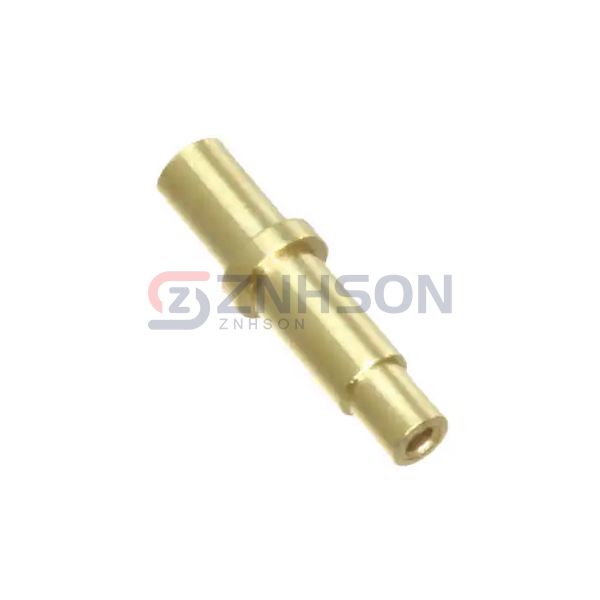

7620-0-34-15-16-27-10-0

Mill-Max Manufacturing Corp.

Manufacturer

Mill-Max Manufacturing Corp.

Description:

DOUBLE ENDED RECEPTACLE

Datasheet:

7620-0-34-15-16-27-10-0 Datasheet

$1.23

Available to order

Reference Price (USD)

$1.10000

10+

$0.96800

25+

$0.91120

50+

$0.87300

100+

$0.83510

250+

$0.75920

500+

$0.68328

1,000+

$0.60736

2,500+

$0.55042

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Rely on 7620-0-34-15-16-27-10-0 from Mill-Max Manufacturing Corp. for premium Connectors, Interconnects. Our Terminals - PC Pin Receptacles, Socket Connectors are designed to meet the highest industry standards. Features include gold-plated terminals, polarized housings, and easy assembly. Perfect for automotive, aerospace, and consumer electronics. Request more information or a sample today to see the difference for yourself.

Specifications

Product Status: Active
Tail Type: -
Termination: -
Length - Overall: 0.445" (11.30mm)
Accepts Pin Diameter: 0.022" ~ 0.034" (0.56mm ~ 0.86mm), 0.032" ~ 0.046" (0.81mm ~ 1.17mm)
Accepts Square Pin Size: 0.025" (0.64mm)
Pin Hole Diameter: 0.051" (1.30mm), 0.064" (1.63mm)
Mounting Hole Diameter: -
Flange Diameter: 0.125" (3.18mm)
Tail Diameter: -
Socket Depth: 0.083" (2.11mm), 0.120" (3.05mm)
Contact Material: Beryllium Copper
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
