768161562GP
CTS Resistor Products
CTS Resistor Products

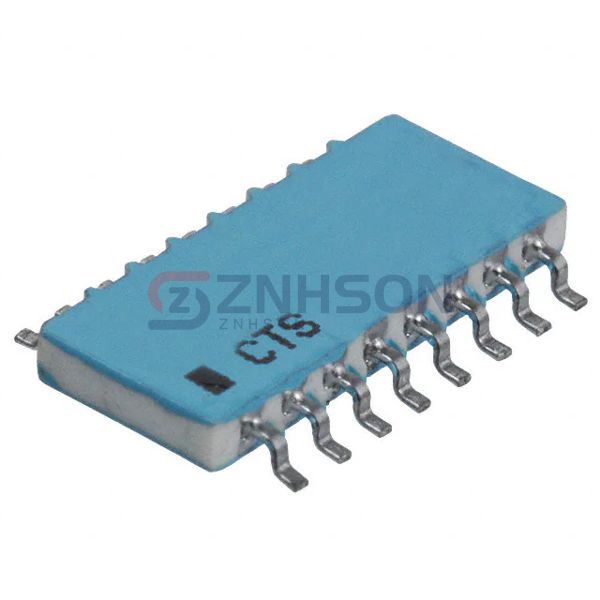

RES ARRAY 15 RES 5.6K OHM 16SOIC
$1.21
Available to order
Reference Price (USD)
1,032+
$0.95127
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Solve complex impedance matching challenges with CTS Resistor Products's 768161562GP resistor arrays. These networks provide: Matched parasitics (<0.5pF) 50 /75 RF options Custom termination schemes. Essential for high-speed digital systems (DDR5 memory, 400GbE PHY) and 5G mmWave beamforming. Every 768161562GP unit ships with a compliance certificate including 3D resistance mapping data. Visit our product page to download IBIS models or schedule a video consultation.
Specifications
- Product Status: Active
- Circuit Type: Bussed
- Resistance (Ohms): 5.6k
- Tolerance: ±2%
- Number of Resistors: 15
- Resistor Matching Ratio: -
- Resistor-Ratio-Drift: -
- Number of Pins: 16
- Power Per Element: 100mW
- Temperature Coefficient: ±100ppm/°C
- Operating Temperature: -55°C ~ 125°C
- Applications: -
- Mounting Type: Surface Mount
- Package / Case: 16-SOIC (0.220", 5.59mm Width)
- Supplier Device Package: -
- Size / Dimension: 0.440" L x 0.220" W (11.18mm x 5.59mm)
- Height - Seated (Max): 0.071" (1.80mm)
