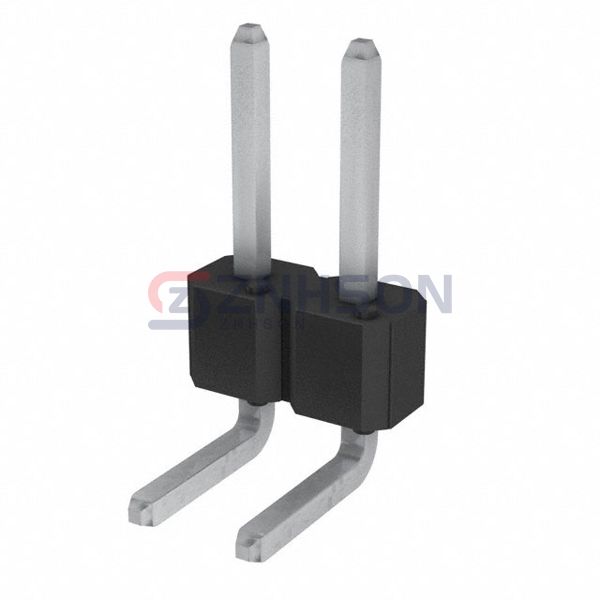

77315-413-02LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)
CONN HEADER R/A 2POS 2.54MM
$0.12
Available to order
Reference Price (USD)
2,000+
$0.08619
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 77315-413-02LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins are the perfect choice for high-performance electronic connections. Designed for durability and efficiency, they support a wide range of applications, from automotive to IoT devices. Experience the Amphenol ICC (FCI) difference today. Contact us for more details and a customized solution!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 2
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.225" (5.72mm)
- Contact Length - Post: 0.136" (3.46mm)
- Overall Contact Length: -
- Insulation Height: 0.094" (2.40mm)
- Contact Shape: Square
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: 78.7µin (2.00µm)
- Contact Finish - Post: Tin
- Contact Material: Phosphor Bronze
- Insulation Material: Thermoplastic
- Features: -
- Operating Temperature: -65°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A per Contact
- Voltage Rating: -
Related Products
Preci-Dip
830-80-049-40-001101
Harwin Inc.
M50-3600642
Samtec Inc.
FTSH-106-01-F-DV-K-P
Amphenol ICC (FCI)
68691-416
Samtec Inc.
TSW-144-08-G-S
Samtec Inc.
FTSH-107-01-L-DH-A-C
Preci-Dip
892-80-032-10-003101
Sullins Connector Solutions
NRPN042PARN-RC
Harwin Inc.

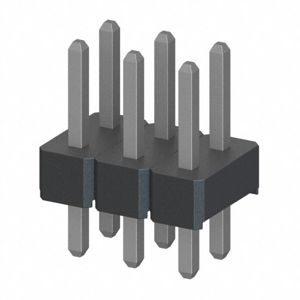

M22-2520346
