776280-6
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

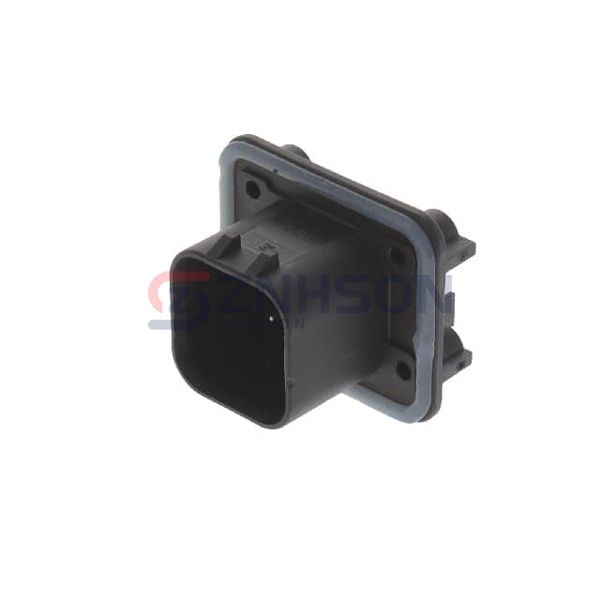

CONN HEADER R/A 8POS 4MM
$14.00
Available to order
Reference Price (USD)
1+
$10.79000
10+
$10.31800
100+
$8.67650
500+
$7.26950
1,000+
$6.42530
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 776280-6 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.157" (4.00mm)
- Number of Positions: 8
- Number of Rows: 3
- Row Spacing - Mating: 0.157" (4.00mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Panel Mount, Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Locking Ramp
- Contact Length - Mating: -
- Contact Length - Post: -
- Overall Contact Length: -
- Insulation Height: -
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: -
- Contact Material: Brass
- Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
- Features: Board Guide, Sealed
- Operating Temperature: -40°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Orange
- Current Rating (Amps): Varies by Wire Gauge
- Voltage Rating: 250VAC
