7949-0-15-20-09-14-11-0
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

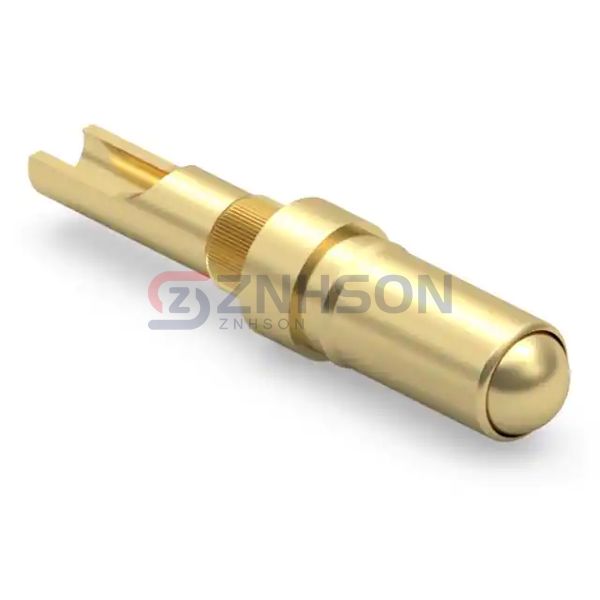

SPRING LOADED PIN WITH SOLDERCUP
$4.29
Available to order
Reference Price (USD)
1+
$4.29000
500+
$4.2471
1000+
$4.2042
1500+
$4.1613
2000+
$4.1184
2500+
$4.0755
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Experience next-level connectivity with 7949-0-15-20-09-14-11-0 Mill-Max Manufacturing Corp. Pressure-Sensitive Contacts, built for durability and precision. These components are essential in automotive sensors, industrial controls, and data communication systems, providing stable connections under varying pressures. Mill-Max Manufacturing Corp. s commitment to quality means you get products that last. Interested in samples or technical details? Reach out today, and our specialists will guide you through our product lineup!
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Through Hole, Solder Cup
- Maximum Working Height: 0.291" (7.39mm)
- Recommended Working Height: 0.276" (7.00mm)
- Minimum Working Height: 0.261" (6.63mm)
- Pad Layout Dimension: Circular - 0.118" (3mm) (TH)
- Operating Force - Initial: 30gf
- Operating Force - Mid Compression: 55gf
- Plunger Size: 0.091" (2.31mm) Dia
- Features: 20 AWG
- Mating Cycles: 1000000
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
