800-10-013-10-002000
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.

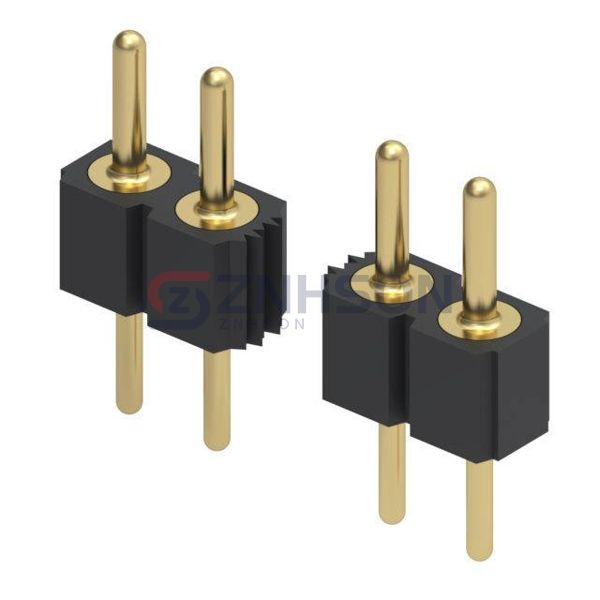

CONN HEADER VERT 13POS 2.54MM
$2.37
Available to order
Reference Price (USD)
1+
$2.08000
10+
$1.88800
25+
$1.77200
50+
$1.69500
100+
$1.61800
250+
$1.46392
500+
$1.34836
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 800-10-013-10-002000 Mill-Max Manufacturing Corp. Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 13
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.142" (3.61mm)
- Contact Length - Post: 0.118" (3.00mm)
- Overall Contact Length: 0.385" (9.77mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 10.0µin (0.25µm)
- Contact Finish - Post: Gold
- Contact Material: Brass Alloy
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT)
- Features: -
- Operating Temperature: -
- Ingress Protection: -
- Material Flammability Rating: -
- Insulation Color: Black
- Current Rating (Amps): -
- Voltage Rating: -
