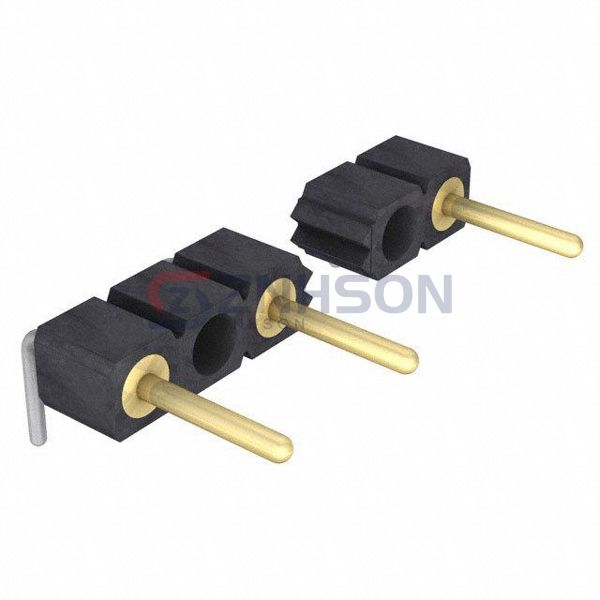

800-V3-017-20-101101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER R/A 9POS 5.08MM

Datasheet:

800-V3-017-20-101101 Datasheet

$2.03

Available to order

Reference Price (USD)

320+

$1.54213

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Experience top-tier connectivity with 800-V3-017-20-101101 Preci-Dip Rectangular Connectors - Headers, Male Pins. These connectors offer superior signal integrity, easy assembly, and long-term reliability for diverse applications. Whether for automotive, industrial, or consumer electronics, Preci-Dip has you covered. Interested? Reach out to us for expert advice and competitive pricing!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.200" (5.08mm)
Number of Positions: 9
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.195" (4.95mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.100" (2.54mm)
Contact Shape: Circular
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 29.5µin (0.75µm)
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
