802-80-038-20-001101

Preci-Dip

Manufacturer

Preci-Dip

Description:

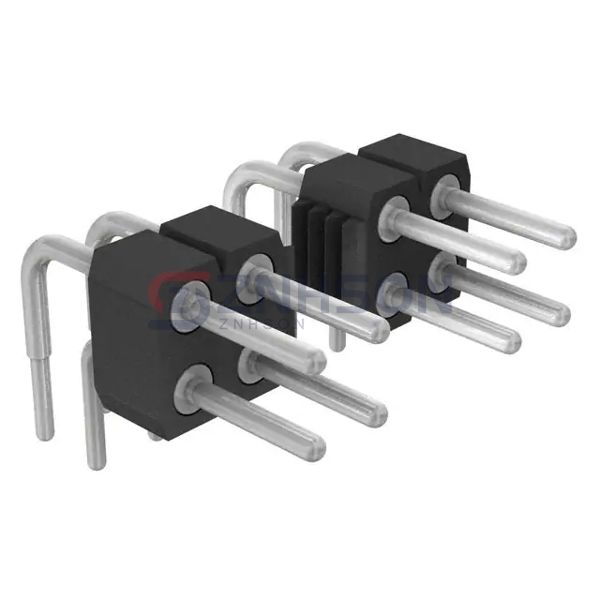

CONN HEADER R/A 38POS 2.54MM

Datasheet:

802-80-038-20-001101 Datasheet

$3.31

Available to order

Reference Price (USD)

330+

$2.44076

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Ensure seamless connectivity with 802-80-038-20-001101 Preci-Dip Rectangular Connectors - Headers, Male Pins. These connectors are built to last, featuring robust contacts, compact design, and versatile mounting options. Ideal for data communication, power supply, and control systems. Don't compromise on quality reach out to us now for your connector requirements!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.100" (2.54mm)
Number of Positions: 38
Number of Rows: 2
Row Spacing - Mating: 0.100" (2.54mm)
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole, Right Angle
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.195" (4.95mm)
Contact Length - Post: 0.126" (3.20mm)
Overall Contact Length: -
Insulation Height: 0.200" (5.08mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 3A
Voltage Rating: 150VDC
