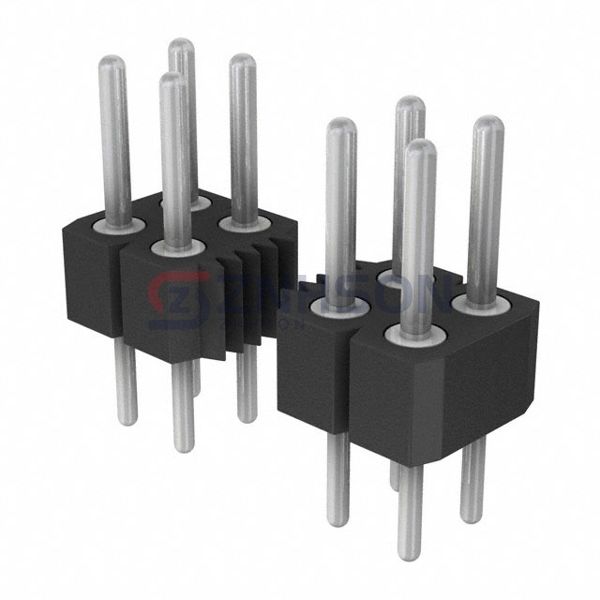

802-80-066-10-001101
Preci-Dip

Preci-Dip
CONN HEADER VERT 66POS 2.54MM
$6.02
Available to order
Reference Price (USD)
192+
$4.67307
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 802-80-066-10-001101 Preci-Dip Rectangular Connectors - Headers, Male Pins are designed for excellence in every connection. With features like polarized housings, vibration resistance, and RoHS compliance, they meet the highest industry standards. Suitable for LED lighting, HVAC systems, and more. Get yours today submit an inquiry now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 66
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Board
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.191" (4.85mm)
- Contact Length - Post: 0.121" (3.08mm)
- Overall Contact Length: 0.438" (11.12mm)
- Insulation Height: 0.110" (2.79mm)
- Contact Shape: Circular
- Contact Finish - Mating: Tin
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Brass
- Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
- Features: -
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: 150VDC
