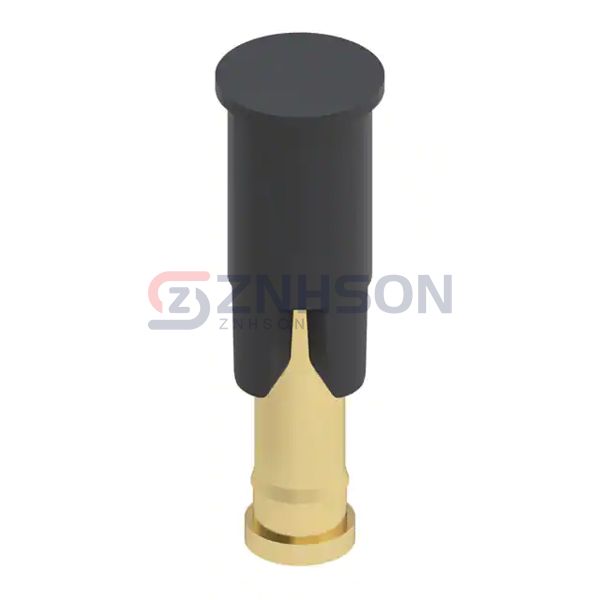

806-22-001-30-013191
Mill-Max Manufacturing Corp.
Mill-Max Manufacturing Corp.
CONTACT SPRING LOADED SMD GOLD
$1.14
Available to order
Reference Price (USD)
550+
$0.64260
1,100+
$0.57120
1,650+
$0.53550
2,750+
$0.51765
5,500+
$0.49980
13,750+
$0.46410
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Upgrade your interconnect solutions with Mill-Max Manufacturing Corp. 806-22-001-30-013191 Spring Loaded Contacts, designed for seamless electrical connections in compact spaces. These versatile Pogo Pins offer low resistance and high durability, perfect for medical devices, automotive electronics, and industrial equipment. Their pressure-sensitive design ensures stable contact even in high-vibration environments. Trust Mill-Max Manufacturing Corp. for precision and performance. Ready to find the right solution for your project? Submit an inquiry now, and our team will provide tailored recommendations!
Specifications
- Product Status: Active
- Contact Type: Sleeve & Plunger (Pogo Pins)
- Mounting Type: Surface Mount
- Maximum Working Height: 0.275" (6.99mm)
- Recommended Working Height: 0.248" (6.29mm)
- Minimum Working Height: -
- Pad Layout Dimension: Circular - 0.072" (1.83mm)
- Operating Force - Initial: 25gf
- Operating Force - Mid Compression: 60gf
- Plunger Size: 0.042" (1.07mm) Dia
- Features: Pick and Place
- Mating Cycles: 1000000
- Contact Material: Copper Alloy
- Contact Finish: Gold
- Contact Finish Thickness: 20.0µin (0.51µm)
