826632-8

TE Connectivity AMP Connectors

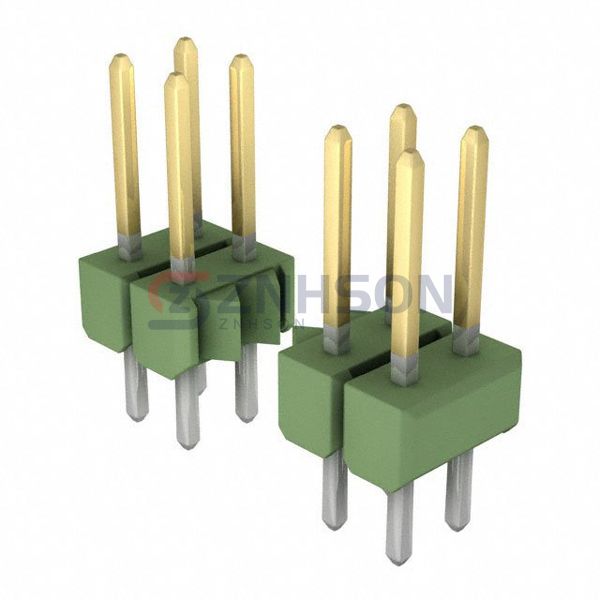

826632-8 Preview
TE Connectivity AMP Connectors
CONN HEADER VERT 16POS 2.54MM
826632-8 Datasheet
$3.24
Available to order
Reference Price (USD)
1+
$2.00000
10+
$1.81400
100+
$1.55490
500+
$1.29578
1,000+
$1.11066
5,000+
$0.98479
10,000+
$0.96257
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 16
  • Number of Rows: 2
  • Row Spacing - Mating: 0.100" (2.54mm)
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.264" (6.70mm)
  • Contact Length - Post: 0.126" (3.20mm)
  • Overall Contact Length: 0.500" (12.70mm)
  • Insulation Height: 0.110" (2.79mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 3.90µin (0.099µm)
  • Contact Finish - Post: Tin
  • Contact Material: Brass
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Features: -
  • Operating Temperature: -65°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Green
  • Current Rating (Amps): 5A
  • Voltage Rating: -
