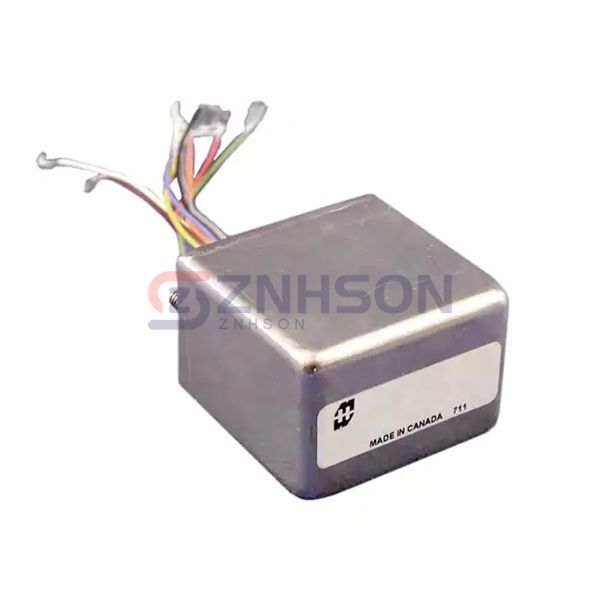

850JA
Hammond Manufacturing
Hammond Manufacturing
TRANSFORMER AUDIO BROADCAST
$146.55
Available to order
Reference Price (USD)
1+
$120.63000
10+
$116.60900
25+
$108.56720
50+
$100.52500
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Maximize audio performance with Hammond Manufacturing 850JA Audio Transformers, offering industry-leading quality and efficiency. These transformers are perfect for high-end audio equipment, delivering pristine sound reproduction. Choose Hammond Manufacturing for components that set the standard. Submit your inquiry now and take your audio projects to the next level.
Specifications
- Product Status: Active
- Turns Ratio - Primary:Secondary: -
- Impedance - Primary (Ohms): 600, 150/150
- Impedance - Secondary (Ohms): 4.8k, 1.2k/1.2k
- DC Resistance (DCR) - Primary: 69Ohm
- DC Resistance (DCR) - Secondary: 570Ohm
- Transformer Type: -
- Frequency Range: 20Hz ~ 20kHz
- Frequency Response: ±0.5dB
- Voltage - Isolation: -
- Insertion Loss: 1dB
- Return Loss: -
- Power Level: 15dB
- Operating Temperature: -
- Approval Agency: -
- Mounting Type: Chassis Mount
- Size / Dimension: 1.700" L x 1.200" W (43.18mm x 30.48mm)
- Height - Seated (Max): 1.650" (41.90mm)
- Termination Style: Wire Leads
