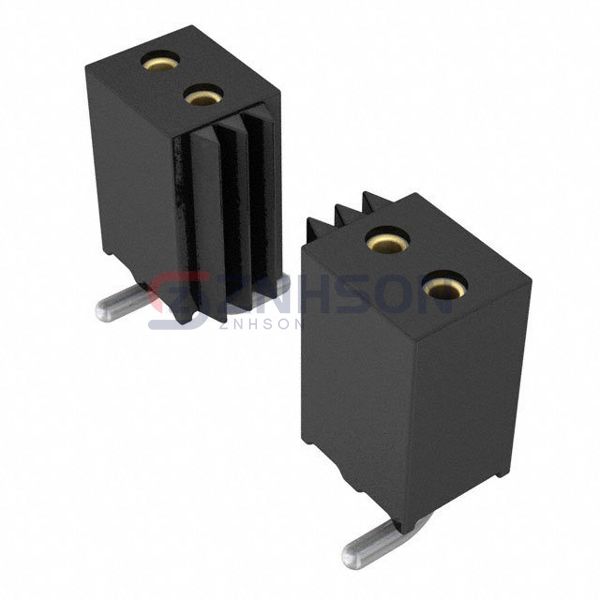

851-87-016-30-136101

Specifications

• Product Status: Active
• Connector Type: Socket
• Contact Type: Female Socket
• Style: Board to Board
• Number of Positions: 16
• Number of Positions Loaded: All
• Pitch - Mating: 0.050" (1.27mm)
• Number of Rows: 1
• Row Spacing - Mating: -
• Mounting Type: Surface Mount
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Finish - Mating: Gold
• Contact Finish Thickness - Mating: Flash
• Insulation Color: Black
• Insulation Height: 0.203" (5.16mm)
• Contact Length - Post: -
• Operating Temperature: -55°C ~ 125°C
• Material Flammability Rating: UL94 V-0
• Contact Finish - Post: Tin
• Mated Stacking Heights: -
• Ingress Protection: -
• Features: Board Guide
• Current Rating (Amps): 1A
• Voltage Rating: -
