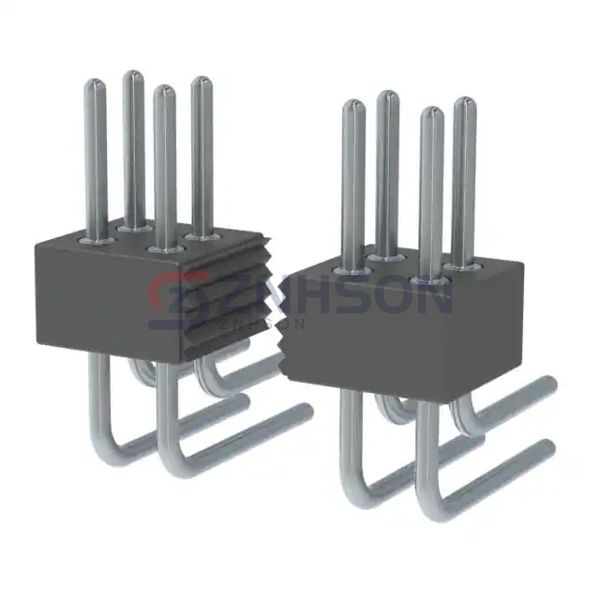

852-90-090-20-001000

Specifications

• Product Status: Active
• Connector Type: Header
• Contact Type: Male Pin
• Pitch - Mating: 0.050" (1.27mm)
• Number of Positions: 90
• Number of Rows: 2
• Row Spacing - Mating: 0.050" (1.27mm)
• Number of Positions Loaded: All
• Style: Board to Board
• Shrouding: Unshrouded
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Fastening Type: Push-Pull
• Contact Length - Mating: 0.118" (3.00mm)
• Contact Length - Post: 0.126" (3.20mm)
• Overall Contact Length: -
• Insulation Height: 0.120" (3.05mm)
• Contact Shape: Circular
• Contact Finish - Mating: Tin-Lead
• Contact Finish Thickness - Mating: 200.0µin (5.08µm)
• Contact Finish - Post: Tin-Lead
• Contact Material: Brass Alloy
• Insulation Material: Polyamide (PA46), Nylon 4/6
• Features: -
• Operating Temperature: -
• Ingress Protection: -
• Material Flammability Rating: -
• Insulation Color: Black
• Current Rating (Amps): -
• Voltage Rating: -
