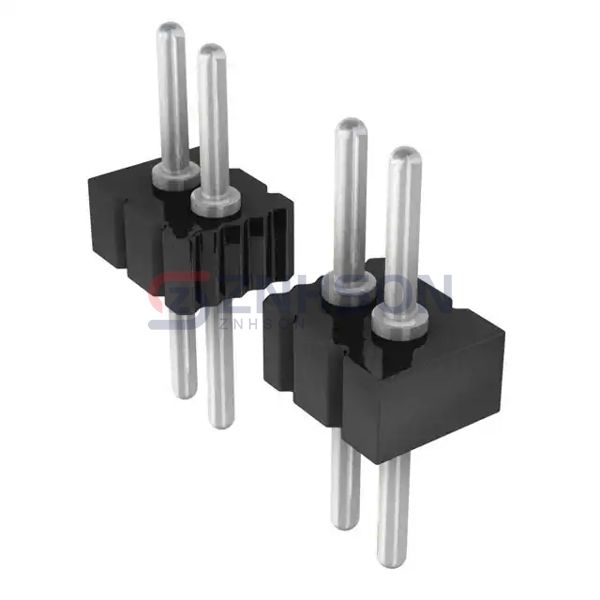

860-80-020-10-001101

Preci-Dip

Manufacturer

Preci-Dip

Description:

CONN HEADER VERT 20POS 1MM

Datasheet:

860-80-020-10-001101 Datasheet

$1.61

Available to order

Reference Price (USD)

250+

$1.83928

Exquisite packaging

Discount

TT / Paypal / Credit Card / Western Union / Money Gram

Boost your project's efficiency with 860-80-020-10-001101 Preci-Dip Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!

Specifications

Product Status: Active
Connector Type: Header
Contact Type: Male Pin
Pitch - Mating: 0.039" (1.00mm)
Number of Positions: 20
Number of Rows: 1
Row Spacing - Mating: -
Number of Positions Loaded: All
Style: Board to Board
Shrouding: Unshrouded
Mounting Type: Through Hole
Termination: Solder
Fastening Type: Push-Pull
Contact Length - Mating: 0.086" (2.20mm)
Contact Length - Post: 0.098" (2.50mm)
Overall Contact Length: 0.241" (6.13mm)
Insulation Height: 0.047" (1.20mm)
Contact Shape: Circular
Contact Finish - Mating: Tin
Contact Finish Thickness - Mating: -
Contact Finish - Post: Tin
Contact Material: Brass
Insulation Material: Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features: -
Operating Temperature: -55°C ~ 125°C
Ingress Protection: -
Material Flammability Rating: UL94 V-0
Insulation Color: Black
Current Rating (Amps): 1A
Voltage Rating: 150VDC
