86130342113345E1LF
Amphenol ICC (FCI)
Amphenol ICC (FCI)

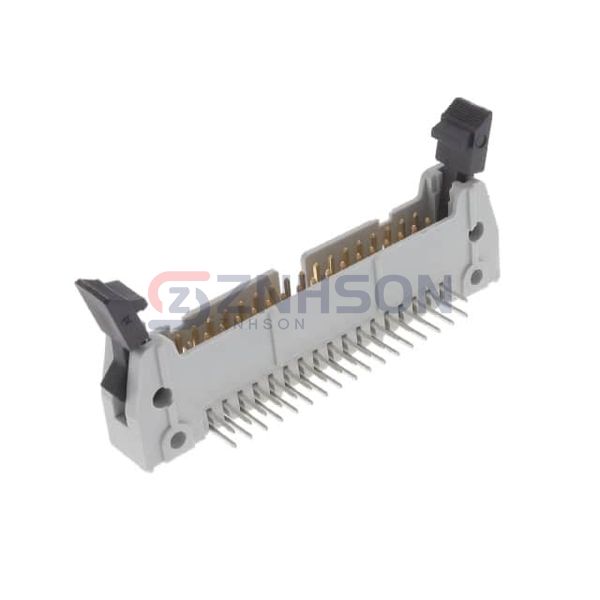

CONN HEADER R/A 34POS 2.54MM
$1.50
Available to order
Reference Price (USD)
288+
$0.76201
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
The 86130342113345E1LF Amphenol ICC (FCI) Rectangular Connectors - Headers, Male Pins deliver precision and reliability for all your connectivity needs. Featuring gold-plated contacts, high-density layouts, and rugged housings, they excel in harsh environments. Perfect for military, automotive, and renewable energy applications. Let us help you find the right connector inquire now!
Specifications
- Product Status: Active
- Connector Type: Header
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 2
- Row Spacing - Mating: 0.100" (2.54mm)
- Number of Positions Loaded: All
- Style: Board to Cable/Wire
- Shrouding: Shrouded - 4 Wall
- Mounting Type: Through Hole, Right Angle
- Termination: Solder
- Fastening Type: Latch Lock/Eject Hooks, Long
- Contact Length - Mating: 0.240" (6.10mm)
- Contact Length - Post: 0.165" (4.19mm)
- Overall Contact Length: -
- Insulation Height: 0.344" (8.75mm)
- Contact Shape: Circular
- Contact Finish - Mating: Gold or Gold-Palladium
- Contact Finish Thickness - Mating: -
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Polybutylene Terephthalate (PBT)
- Features: Keying Slot
- Operating Temperature: -55°C ~ 125°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Gray
- Current Rating (Amps): -
- Voltage Rating: 250V
