9-146280-0-34
TE Connectivity AMP Connectors
TE Connectivity AMP Connectors
CONN HEADER VERT 34POS 2.54MM
$3.86
Available to order
Reference Price (USD)
1+
$3.57000
10+
$3.42300
25+
$3.13800
50+
$2.99540
100+
$2.85280
250+
$2.49620
500+
$2.42490
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram
Boost your project's efficiency with 9-146280-0-34 TE Connectivity AMP Connectors Rectangular Connectors - Headers, Male Pins. These connectors ensure low insertion force, high mating cycles, and EMI shielding for superior performance. Ideal for medical equipment, robotics, and telecommunications. Need a quote? Contact us today and let s discuss your requirements!
Specifications
- Product Status: Active
- Connector Type: Header, Breakaway
- Contact Type: Male Pin
- Pitch - Mating: 0.100" (2.54mm)
- Number of Positions: 34
- Number of Rows: 1
- Row Spacing - Mating: -
- Number of Positions Loaded: All
- Style: Board to Board or Cable
- Shrouding: Unshrouded
- Mounting Type: Through Hole
- Termination: Solder
- Fastening Type: Push-Pull
- Contact Length - Mating: 0.230" (5.84mm)
- Contact Length - Post: 0.120" (3.05mm)
- Overall Contact Length: 0.440" (11.18mm)
- Insulation Height: 0.090" (2.29mm)
- Contact Shape: Square
- Contact Finish - Mating: Gold
- Contact Finish Thickness - Mating: 15.0µin (0.38µm)
- Contact Finish - Post: Tin
- Contact Material: Copper Alloy
- Insulation Material: Liquid Crystal Polymer (LCP)
- Features: -
- Operating Temperature: -65°C ~ 105°C
- Ingress Protection: -
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
- Current Rating (Amps): 3A
- Voltage Rating: -
Related Products
Samtec Inc.
FTS-113-01-FM-DV-TR
Amphenol ICC (FCI)
95278-802A06LF
Preci-Dip
852-10-010-10-002101
Samtec Inc.
TSM-114-01-L-SH-TR
Samtec Inc.
MMT-115-01-S-DH-P
Samtec Inc.
FTSH-150-04-F-DH
Molex
0015911108
Samtec Inc.
ZSS-108-07-S-D-1140
Samtec Inc.

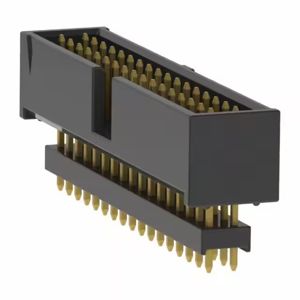

ZSS-117-01-G-D-500
