9-146304-0-12

TE Connectivity AMP Connectors

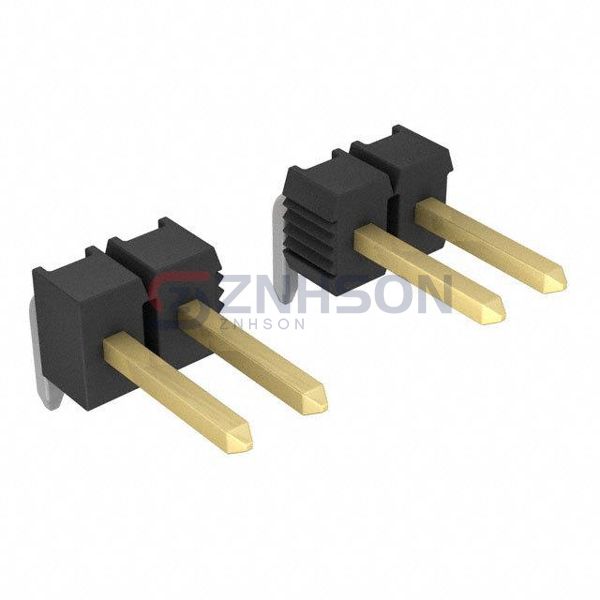

9-146304-0-12 Preview
TE Connectivity AMP Connectors
CONN HEADER R/A 12POS 2.54MM
9-146304-0-12 Datasheet
$3.05
Available to order
Reference Price (USD)
1+
$2.82000
10+
$2.70700
25+
$2.48120
50+
$2.36840
100+
$2.25560
250+
$1.97368
500+
$1.91730
Exquisite packaging
Discount
TT / Paypal / Credit Card / Western Union / Money Gram

Specifications

  • Product Status: Active
  • Connector Type: Header, Breakaway
  • Contact Type: Male Pin
  • Pitch - Mating: 0.100" (2.54mm)
  • Number of Positions: 12
  • Number of Rows: 1
  • Row Spacing - Mating: -
  • Number of Positions Loaded: All
  • Style: Board to Board or Cable
  • Shrouding: Unshrouded
  • Mounting Type: Through Hole, Right Angle
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Contact Length - Mating: 0.230" (5.84mm)
  • Contact Length - Post: 0.120" (3.05mm)
  • Overall Contact Length: -
  • Insulation Height: 0.138" (3.50mm)
  • Contact Shape: Square
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 30.0µin (0.76µm)
  • Contact Finish - Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic, Glass Filled
  • Features: -
  • Operating Temperature: -65°C ~ 105°C
  • Ingress Protection: -
  • Material Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Current Rating (Amps): 3A
  • Voltage Rating: -
